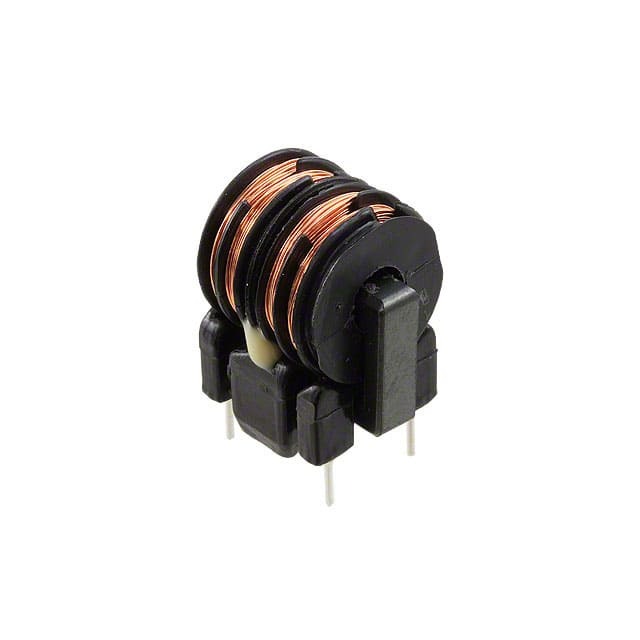

SS21V-R080200 Kemet
Same model may have multiple batches, images only for reference.

SS21V-R080200

Part No SS21V-R080200
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 1 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 800mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-10574,UAL21VR0802000
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276775-SS21V-R080200
Ultra Librarian 3D Model Ultra Librarian SS21V-R080200 CAD Model

Description

The KEMET SS21V-R080200 is a common mode choke filter with a voltage rating of 250V AC and a current rating of 800mA.

  • Inductance: 20 mH @ 1 kHz
  • DC Resistance: 800mOhm (max)
  • Package: through-hole mounting with a vertical, 4 PC pin
  • Filter: power line applications
  • Lines: two lines
  • Temperature Range: -25°C to 120°C
  • Package: bulk
  • Standard Package: 600
