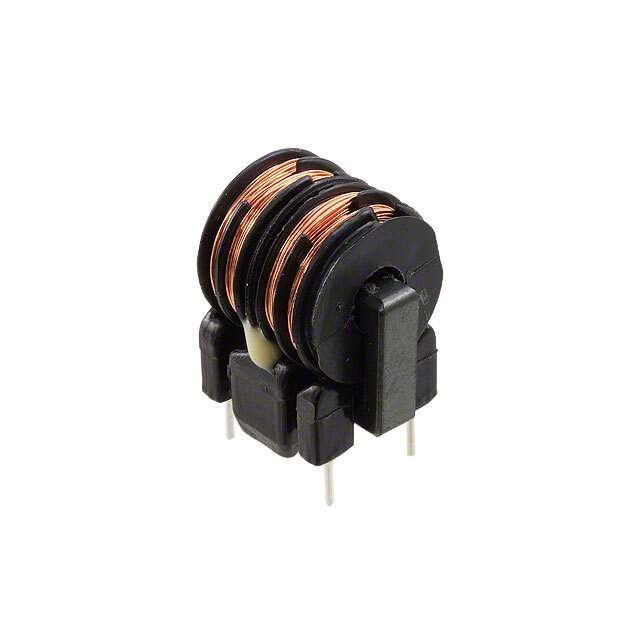

SS21V-R040770 Real Image
Same model may have multiple batches, images only for reference.

SS21V-R040770

Part No SS21V-R040770
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 77 mH @ 1 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 5.4Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-10571
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276745-SS21V-R040770
Ultra Librarian 3D Model Ultra Librarian SS21V-R040770 CAD Model

Description

The Kemet SS21V-R040770 is a common mode choke filter designed for use in power line applications.

  • Maximum Voltage Rating: 250V AC
  • Maximum Current Rating: 400mA
  • Lines: Two lines
  • Inductance: 77mH @ 1kHz
  • DC Resistance (DCR): 5.4Ohm
  • Mounting Type: Through hole
  • Package: Vertical, with four PC pins
  • Temperature Range: -25°C to 120°C
  • Dimensions: 0.807" L x 0.650" W (20.50mm x 16.50mm)
  • RoHS compliant: Yes
  • ECCN: EAR99
  • Reliable and efficient solution for: Power filtering needs
