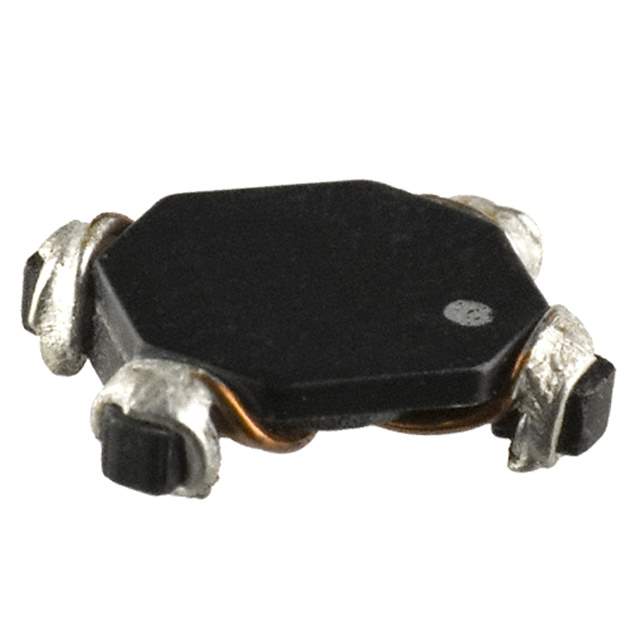

CMS1-11-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-11-R

Part No CMS1-11-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 100UH 1.35A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 18 Weeks
Features 2 Line Common Mode Choke Surface Mount 1.35A DCR 70mOhm (Typ)
Manufacturer Eaton Bussmann
Series CMS
Package Reel - TR
Operating Temperature Range -40°C ~ 160°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 283-4048-6, CMS111R, 283-4048-2, 283-4048-1, Q7534238AB, CMS1-11, CMS1-11-ND, CMS1-11-R-ND
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915628-CMS1-11-R
Ultra Librarian 3D Model Ultra Librarian CMS1-11-R CAD Model

Description

The Eaton Bussmann CMS1-11-R is a 2 line common mode choke that is surface mountable.

  • Lines: 2
  • Type: Common Mode Choke
  • Mounting Type: Surface Mountable
  • Current Rating: 1.35A
  • DCR: 70mOhm (Typ)
  • Package: Reel
  • Pieces per Package: 2000
  • ECCN: EAR99
  • HTSUS: 8548.90.0100
  • Estimated Production Lead Time: 18 weeks
  • Other Part Numbers: 283-4048-6, CMS111R, 283-4048-2, 283-4048-1, Q7534238AB, CMS1-11, CMS1-11-ND, CMS1-11-R-ND
