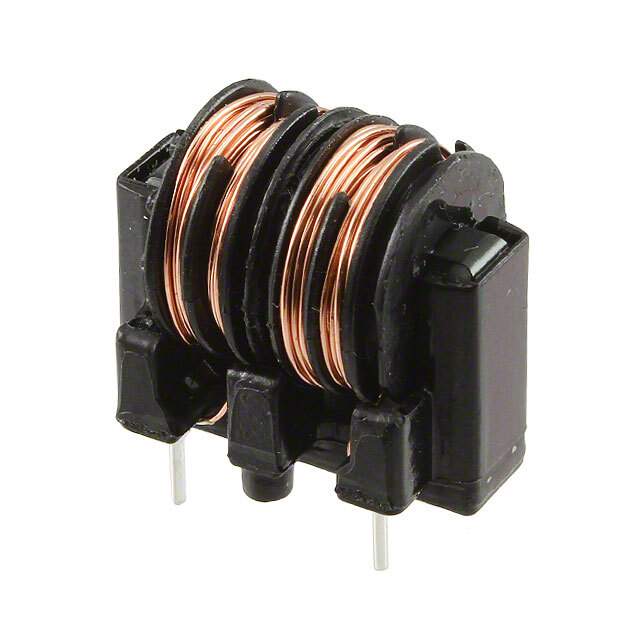

SS17VA-R10025 Real Image
Same model may have multiple batches, images only for reference.

SS17VA-R10025

Part No SS17VA-R10025
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Product Status Last Time Buy
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.5 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 380mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.472" W (17.00mm x 12.00mm)
Height (Max) 0.634" (16.10mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS17VA
Other Names 399-SS17VA-R10025,399-10676,UAL17VAR100250,399-10676
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276736-SS17VA-R10025
Ultra Librarian 3D Model Ultra Librarian SS17VA-R10025 CAD Model

Description

The KEMET's SS series SS17VA-R10025 is a power line common mode choke, designed for use in filters.

  • Package: Bulk
  • Maximum AC Voltage Rating: 250V
  • Maximum DC Resistance: 380mOhm
  • Maximum Current Rating: 1A
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Height: 0.634" (16.10mm)
  • Lines: Two lines
  • Inductance: 2.5 mH @ 1 kHz
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • HTSUS code: 8504.31.4065
  • Other names for this product: 399-SS17VA-R10025, 399-10676, UAL17VAR100250, and 399-10676
  • Status: This product is on last time buy
