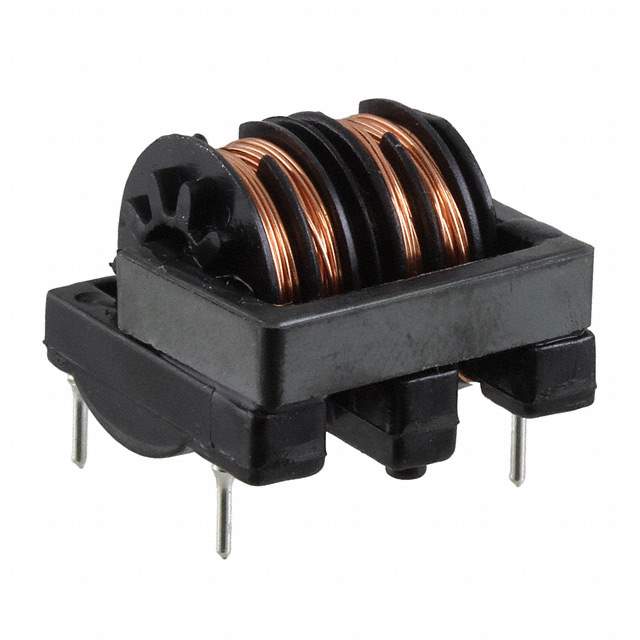

SS11H-07120-CH Real Image
Same model may have multiple batches, images only for reference.

SS11H-07120-CH

Part No SS11H-07120-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 1 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 900mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.827" L x 0.807" W (21.00mm x 20.50mm)
Height (Max) 0.669" (17.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SS11H
Other Names 399-10741,399-10741,399-SS11H-07120-CH,UAL11H07120CH0
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276793-SS11H-07120-CH
Ultra Librarian 3D Model Ultra Librarian SS11H-07120-CH CAD Model

Description

The Kemet SS11H-07120-CH is a common mode choke filter that is used in power line applications.

  • Voltage Rating: 250V AC
  • Current Rating (Max): 700mA
  • Inductance @ Frequency: 12 mH @ 1 kHz
  • DC Resistance (DCR) (Max): 900mOhm
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Length: 0.827 inches
  • Width: 0.807 inches (21.00mm x 20.50mm)
  • Package: Bulk
  • Standard Package: 800
It is manufactured by Kemet and has a Win Source Part Number of 1276793-SS11H-07120-CH.
