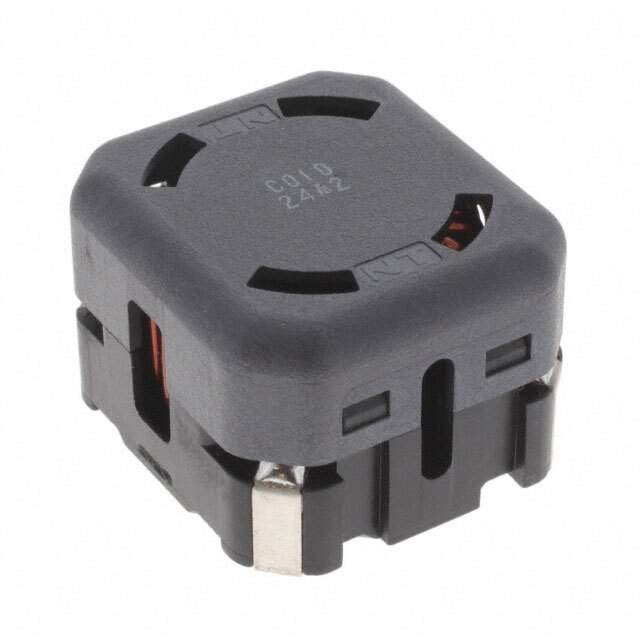

SPF-100-1R1A010

Part No SPF-100-1R1A010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SPF
Package Tray
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 1 µH @ 10 kHz
Current Rating (Max) 10mA
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 150V
Temperature Range - Operating 40°C ~ 120°C
Mounting SMD (SMT)
Dimension 1.181" L x 1.063" W (30.00mm x 27.00mm)
Height (Max) 0.807" (20.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SPF-100
Other Names UDLSPF0100010B,399-SPF-100-1R1A010
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276802-SPF-100-1R1A010
Ultra Librarian 3D Model Ultra Librarian SPF-100-1R1A010 CAD Model

Description

The SPF series is a common mode choke filter designed for signal line applications.

  • Series: SPF series
  • Mounting Type: Horizontal, 4 PC pad
  • Package Size: 1.181" L x 1.063" W (30.00mm x 27.00mm)
  • DC Voltage Rating: 150V
  • Current Rating (Max): 10mA
  • Lines: 2
  • Inductance @ Frequency: 1 µH @ 10 kHz
  • DC Resistance (DCR): 10mOhm
  • Filter Type: Signal line
  • Operating Temperature: 40°C ~ 120°C
The SPF-100 is ideal for use in noise suppression applications where the signal line is required to be filtered.
