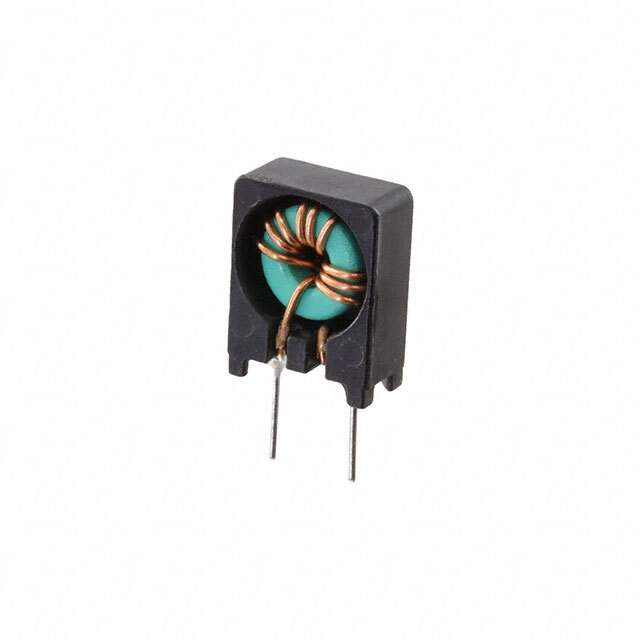

SNT-D30 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 20 µH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 98mOhm
Temperature Range - Operating 20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-D
Other Names UDLSNT0D300000,399-SNT-D30
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276815-SNT-D30
Ultra Librarian 3D Model Ultra Librarian SNT-D30 CAD Model

Description

The KEMET SNT-D30 is a signal line filter with a maximum current rating of 500mA and a standard package of 1,000.

  • Height: 0.500" (12.70mm)
  • Lines: 2
  • Inductance @ Frequency: 20 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 98mOhm
  • Mounting Type: Through hole
  • Package/Case: Vertical, 2 PC pin
  • Temperature Range for Operating: 20°C ~ 60°C
  • Dimension: 0.374" L x 0.236" W (9.50mm x 6.00mm)
  • Series: SNT
  • Win Source Part Number: Win Source Part Number
