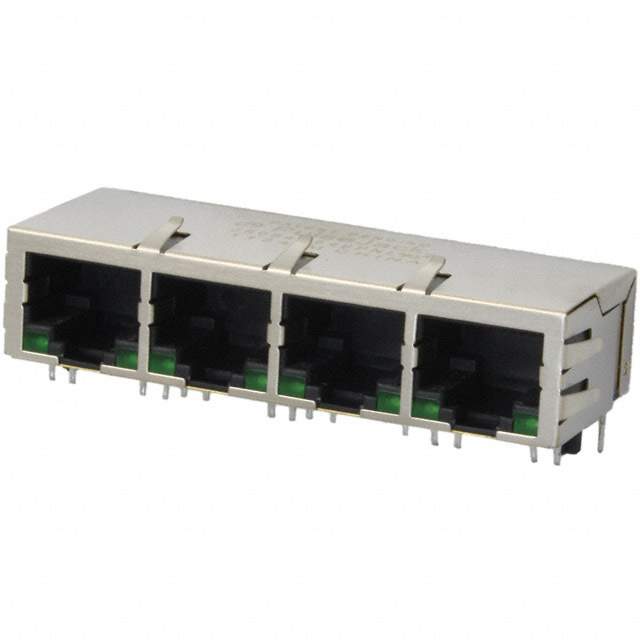

J8064D649PNL Real Image
Same model may have multiple batches, images only for reference.

J8064D649PNL

Part No J8064D649PNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 4PORT 100 BASE-TX PCB / 4 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
J8064D649PNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 4
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.536" (13.61mm)
LED Color Green - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 15
Win Source Part Number 1333945-J8064D649PNL
Ultra Librarian 3D Model Ultra Librarian J8064D649PNL CAD Model

Description

This product is a modular connector jack with magnetics that belongs to the category of connectors, interconnects, and modular connectors.

  • Packaging: Tray
  • Package: 15
  • Connector Type: RJ45
  • Row: One
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.536" (13.61mm)
  • Shielding: Shielded, EMI finger
  • Housing Material: Thermoplastic
  • Applications: 10/100 Base-TX, AutoMDIX
  • Orientation: 90° angle (right)
  • Ports: Four
  • Mounting Type: Through-hole
  • LED Color: Green-green
  • Number of Cores per Jack: 4
  • Tab Direction: Down
  • Shield Material: Brass
  • Temperature Range: 0°C ~ 70°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • RoHS Status: RoHS compliant
