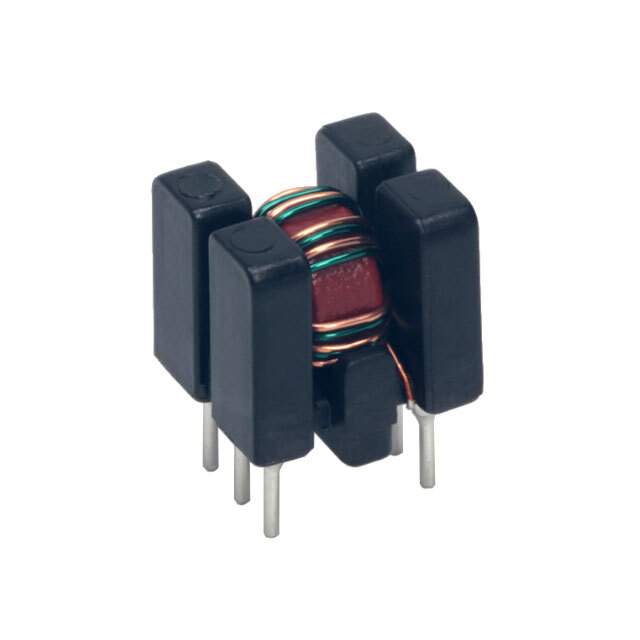

SH-312 Real Image
Same model may have multiple batches, images only for reference.

SH-312

Part No SH-312
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.374" (9.50mm)
Package / Case Vertical, 4 PC Pin
Other Names 399-19665,UDLSH003120000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276858-SH-312
Ultra Librarian 3D Model Ultra Librarian SH-312 CAD Model

Description

The KEMET 1276858-SH-312 Common Mode Choke is a power line filter with a maximum current rating of 3A and a maximum DC resistance of 30mOhm.

  • Manufacturer:KEMET
  • Series: SH
  • Filter Type: Power Line
  • Maximum Current Rating: 3A
  • Maximum DC Resistance: 30mOhm
  • Voltage Rating (DC): 150V
  • Mounting: Through-Hole
  • Package: Bulk
  • Pin Configuration: Vertical, 4 PC pin
  • Lines: 2
  • Height: 0.374" (9.50mm)
  • Operating Temperature Range: -25°C to 80°C
