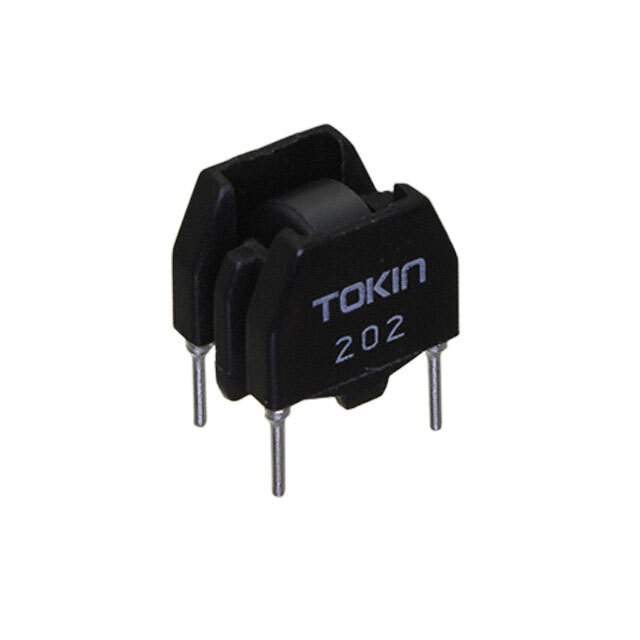

Part No SH-202
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Other Names UDLSH002020000,399-19658
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276857-SH-202
Ultra Librarian 3D Model Ultra Librarian SH-202 CAD Model

Description

The KEMET SH series common mode choke is a power line filter type.

  • Manufacturer:KEMET
  • Series: SH
  • Filter Type: Power Line
  • Maximum Current Rating: 3A
  • Voltage Rating (DC): 150V
  • Height: 0.472 inches
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 80°C
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8548.00.0000
