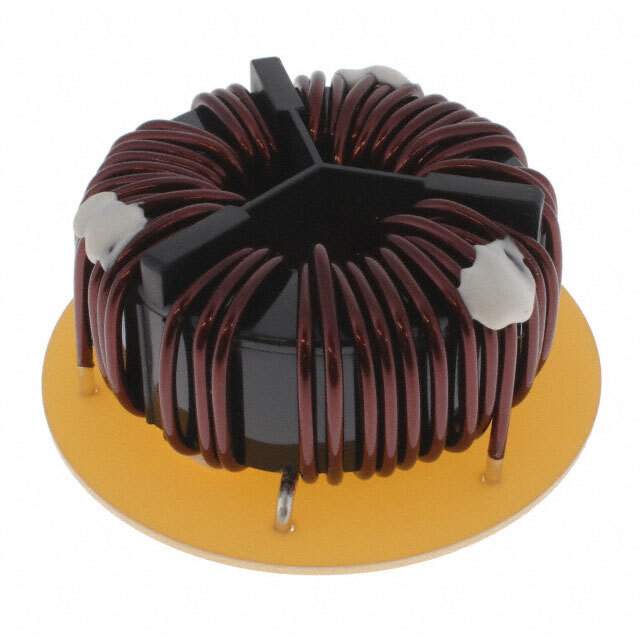

SCR47-140-S1R8A025JH-P Real Image
Same model may have multiple batches, images only for reference.

SCR47-140-S1R8A025JH-P

Part No SCR47-140-S1R8A025JH-P
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 2.5 mH @ 10 kHz
Current Rating (Max) 14A
DC Resistance (DCR) (Max) 9mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.756" Dia (70.00mm)
Height (Max) 1.417" (36.00mm)
Package / Case Horizontal, 6 PC Pin
Base Product Number SCR47-140
Other Names UALBA1R8A025JH,399-SCR47-140-S1R8A025JH-P
Standard Package 36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276867-SCR47-140-S1R8A025JH-P
Ultra Librarian 3D Model Ultra Librarian SCR47-140-S1R8A025JH-P CAD Model

Description

The Kemet 1276867-SCR47-140-S1R8A025JH-P is a common mode choke filter that is designed to provide reliable performance in a wide range of electronic applications.

  • Manufacturer:Kemet
  • Series: SCR
  • Voltage Rating (AC/DC): 250 volts
  • Current Rating: 14 amps
  • Inductance: 2.5 millihenries @ 10 kilohertz
  • DC Resistance: 9 milliohms
  • Mounting Type: Through Hole
