Same model may have multiple batches, images only for reference.

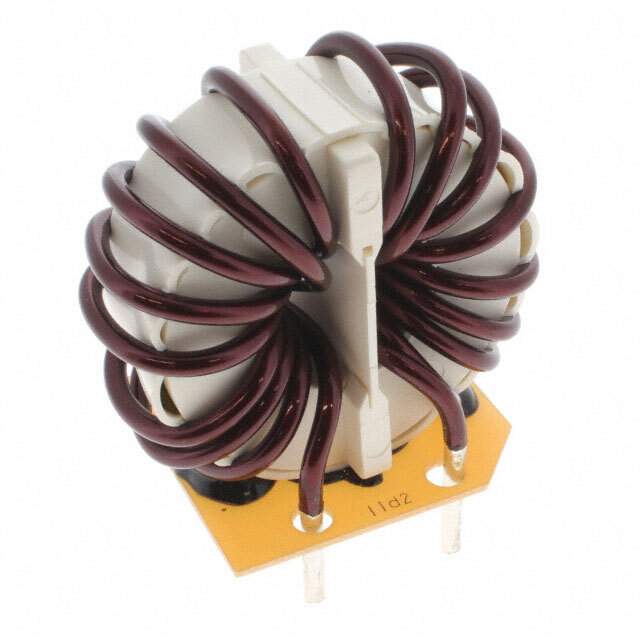

SCR38-200-2R3A010J Real Image
Same model may have multiple batches, images only for reference.

SCR38-200-2R3A010J

Part No SCR38-200-2R3A010J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 10 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 3.5mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 2.008" (51.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SCR38-200
Other Names 399-20213,UALAD2R3A010J0
Standard Package 75
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276904-SCR38-200-2R3A010J
Ultra Librarian 3D Model Ultra Librarian SCR38-200-2R3A010J CAD Model

Description

The SCR38-200-2R3A010J is a common mode choke filter designed for power line circuits.

  • Manufacturer: KEMET
  • Product Name: SCR38-200-2R3A010J
  • Mounting: Through-hole
  • Package/Case: 4 PC pins and is vertically mounted
  • Maximum Height: 2.008 inches (51.00mm)
  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 20A
  • Inductance: 1mH @ 10 kHz
  • DC Resistance: 3.5mOhm (max)
  • Temperature Range: -25°C to 120°C
  • Series: SCR38
