Same model may have multiple batches, images only for reference.

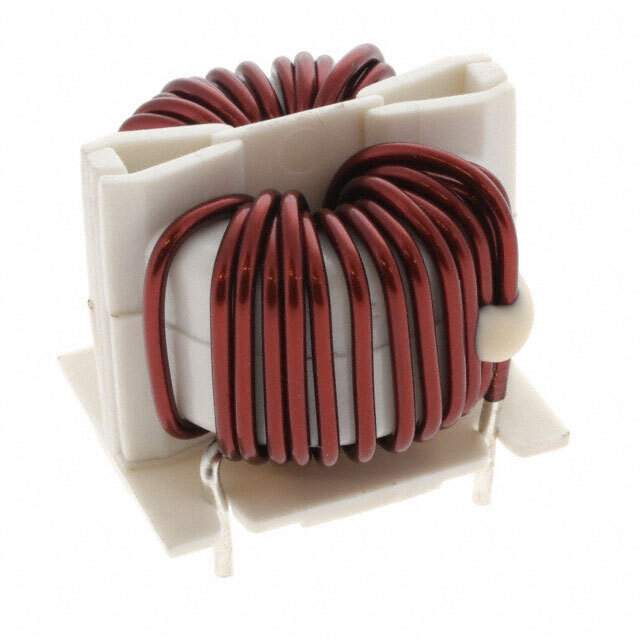

SCR-030-0R6A170JH Real Image
Same model may have multiple batches, images only for reference.

SCR-030-0R6A170JH

Part No SCR-030-0R6A170JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 mH @ 10 kHz
Current Rating (Max) 3A
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 1.063" W (29.00mm x 27.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-030
Other Names 399-20189,UAL30R6A170JH0
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276895-SCR-030-0R6A170JH
Ultra Librarian 3D Model Ultra Librarian SCR-030-0R6A170JH CAD Model

Description

The KEMET 1276895-SCR-030-0R6A170JH Common Mode Choke is a power line filter with a maximum current rating of 3A and a voltage rating of 250V AC/DC.

  • Manufacturer: KEMET
  • Product Name: 1276895-SCR-030-0R6A170JH
  • Maximum Current Rating: 3A
  • Voltage Rating: 250V AC/DC
  • Maximum DC Resistance: 30mOhm
  • Mounting: Through-hole
  • Package: Bulk
  • Configuration: Horizontal, 4 PC pin
  • Filter Type: Power line
  • Lines: Two
  • Height: 0.906" (23.00mm)
  • Temperature Range: -25°C to 120°C
  • Series: SCR
  • Inductance: 15 mH @ 10 kHz
