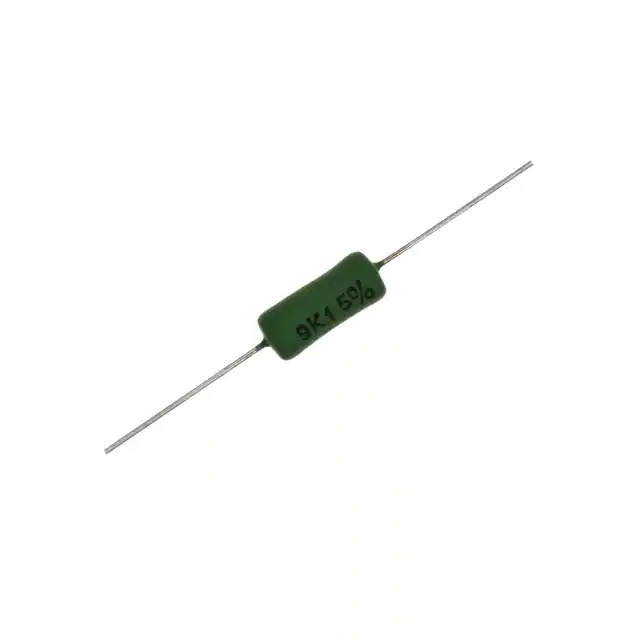

Same model may have multiple batches, images only for reference.

AC05000001002JAC00

Name: AC05000001002JAC00
Brand: Vishay
SKU: 1374911
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AC05000001002JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 10K OHM 5W 5% AXIAL
Datasheet	AC05000001002JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	AC
Product Status	Active
Resistance	10 kOhms
Tolerance	±5%
Power (Watts)	5W
Composition	Wirewound
Features	Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient	100/ +180ppm/°C
Temperature Range - Operating	-40°C ~ 275°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.295" Dia x 0.709" L (7.50mm x 18.00mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0080
Win Source Part Number	1374911-AC05000001002JAC00
Ultra Librarian 3D Model	Ultra Librarian AC05000001002JAC00 CAD Model

Alternative Products

Description

The Vishay Beyschlag/Draloric/BC Components AC Series Resistors are flame retardant coated resistors with a pulse-withstanding and safety feature. These axial resistors have a tolerance of ±5% and a resistance of 10 kOhms.

Tolerance: ±5%
Resistance: 10 kOhms
Composition: Wirewound
Power Rating: 5W
Size/Dimension: 0.295" Dia x 0.709" L (7.50mm x 18.00mm)
Temperature Range: -40°C to 275°C
