Same model may have multiple batches, images only for reference.

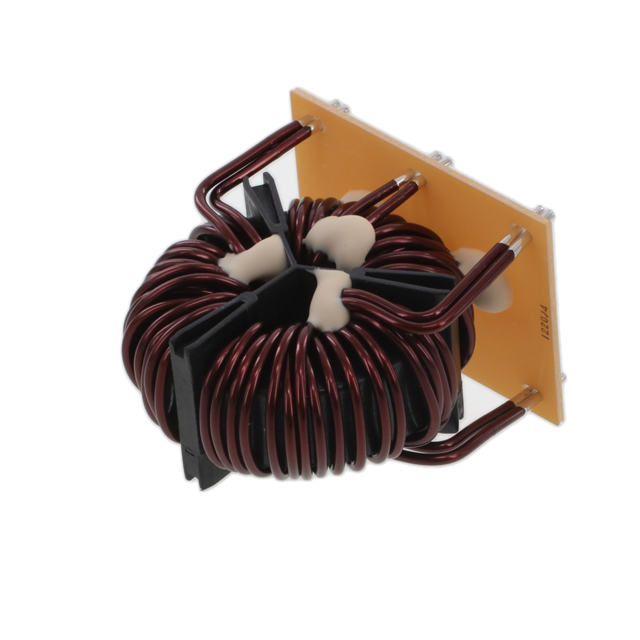

SCF47B-300-S2R0B012J Real Image
Same model may have multiple batches, images only for reference.

SCF47B-300-S2R0B012J

Part No SCF47B-300-S2R0B012J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 1.2 mH @ 100 kHz
Current Rating (Max) 30A
DC Resistance (DCR) (Max) 2.4mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.480" L x 1.772" W (63.00mm x 45.00mm)
Height (Max) 2.559" (65.00mm)
Package / Case Vertical, 6 PC Pin
Base Product Number SCF47B
Other Names UALF47BS012J00,399-SCF47B-300-S2R0B012J
Standard Package 27
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276910-SCF47B-300-S2R0B012J
Ultra Librarian 3D Model Ultra Librarian SCF47B-300-S2R0B012J CAD Model

Description

The SCF47B-300-S2R0B012J is a common mode choke from KEMET's SCF series.

  • Mounting Type: Through-hole
  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 30A
  • Height: 2.559 inches
  • Package/Case: Vertical, 6 PC pin
  • Temperature Range: 25°C ~ 120°C
  • Number of Lines: 3
  • Inductance: 1.2 mH @ 100 kHz
  • DC Resistance: 2.4mOhm
  • Packaging: Tray
  • Dimension Length: 2.480 inches
  • Dimension Width: 1.772 inches
