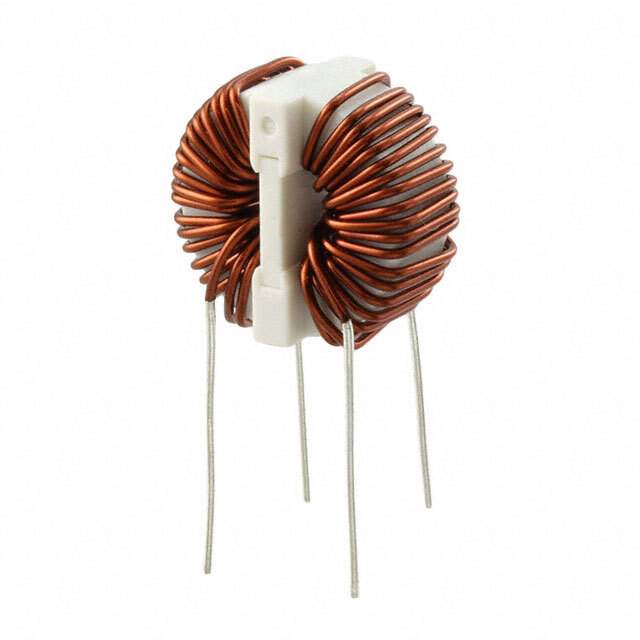

SCF20-05-550 Real Image
Same model may have multiple batches, images only for reference.

SCF20-05-550

Part No SCF20-05-550
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5.5 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 28mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.610" W (25.00mm x 15.50mm)
Height (Max) 0.984" (25.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF20-05
Other Names UALSCF20055500,399-10780
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277040-SCF20-05-550
Ultra Librarian 3D Model Ultra Librarian SCF20-05-550 CAD Model

Description

The KEMET SCF20-05 series common mode choke is a power line filter with a voltage rating - AC of 250V and a voltage rating - DC of 250V.

  • Voltage Rating - AC: 250V
  • Voltage Rating - DC: 250V
  • Current Rating (max): 5A
  • Standard Package: 400
  • Height (max): 0.984" (25.00mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 5.5 mH @ 10 kHz
  • DC Resistance (DCR) (max): 28mOhm
  • Mounting Type: Through hole
  • Package / Case: Vertical, no base, 4 PC pin
  • Temperature Range - Operating: -25°C ~ 120°C
  • Dimension: 0.984" L x 0.610" W (25.00mm x 15.50mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.31.4065
  • Other Names: UALSCF20055500 and 399-10780
  • Approval Agency: Not applicable
