Same model may have multiple batches, images only for reference.

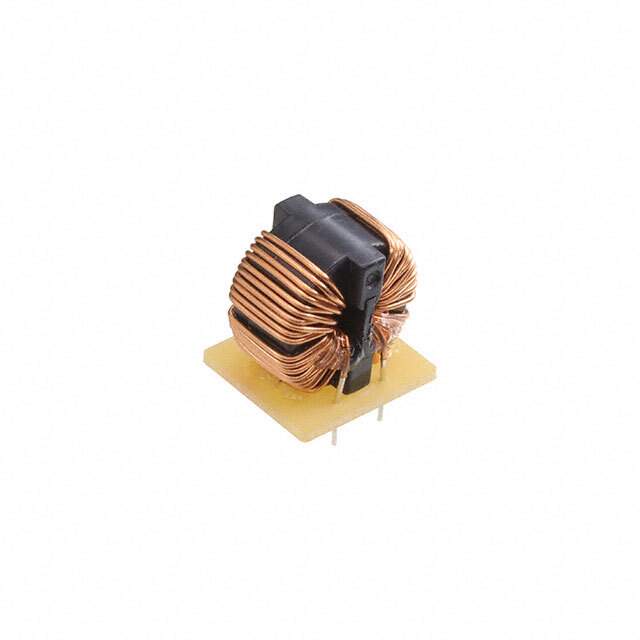

SCF19-040-0R8A1100J Real Image
Same model may have multiple batches, images only for reference.

SCF19-040-0R8A1100J

Part No SCF19-040-0R8A1100J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 11 mH @ 50 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.122" L x 0.906" W (28.50mm x 23.00mm)
Height (Max) 1.122" (28.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SCF19-040
Other Names UALF190401100J,399-SCF19-040-0R8A1100J
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276923-SCF19-040-0R8A1100J
Ultra Librarian 3D Model Ultra Librarian SCF19-040-0R8A1100J CAD Model

Description

The SCF19-040-0R8A1100J is a common mode choke filter designed for use in power line applications.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 4A
  • Height: 1.122" (28.50mm)
  • Lines: 2
  • Inductance: 11 mH @ 50 kHz
  • DC Resistance (DCR): 70mOhm
  • Mounting: Through-hole
  • Package: Tray package
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • Manufacturer: KEMET
  • Base Product Number: SCF19-040
