Same model may have multiple batches, images only for reference.

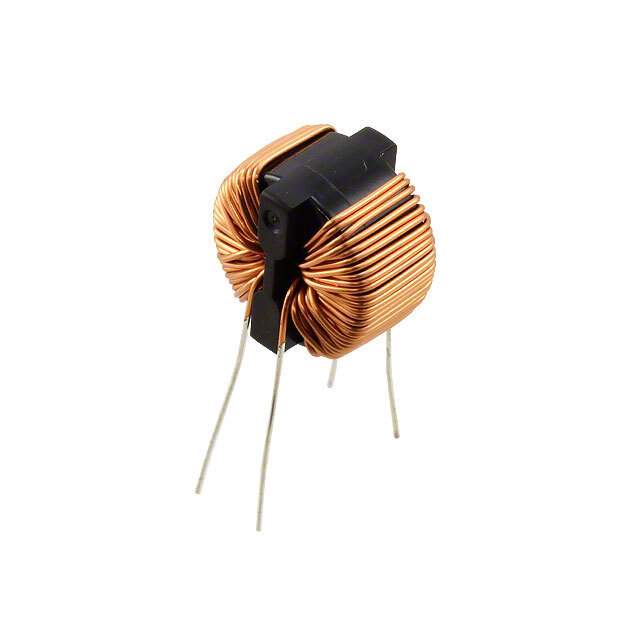

SCF-02-1300 Real Image
Same model may have multiple batches, images only for reference.

SCF-02-1300

Part No SCF-02-1300
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 13 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 115mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.591" L x 0.472" W (15.00mm x 12.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF-02
Other Names 399-10776,UALSCF02130000
Standard Package 1,300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277075-SCF-02-1300
Ultra Librarian 3D Model Ultra Librarian SCF-02-1300 CAD Model

Description

The SCF-02-1300 is a common mode choke filter manufactured by Kemet.

  • Filter Type: Power Line
  • Voltage Rating: 250V AC and 250V DC
  • Current Rating: 2A
  • Inductance: 13 mH @ 10 kHz
  • DC Resistance: 115mOhm
  • Mounting: Through a hole
  • Package: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • RoHS: RoHS compliant
  • REACH: Unaffected by REACH
