Same model may have multiple batches, images only for reference.

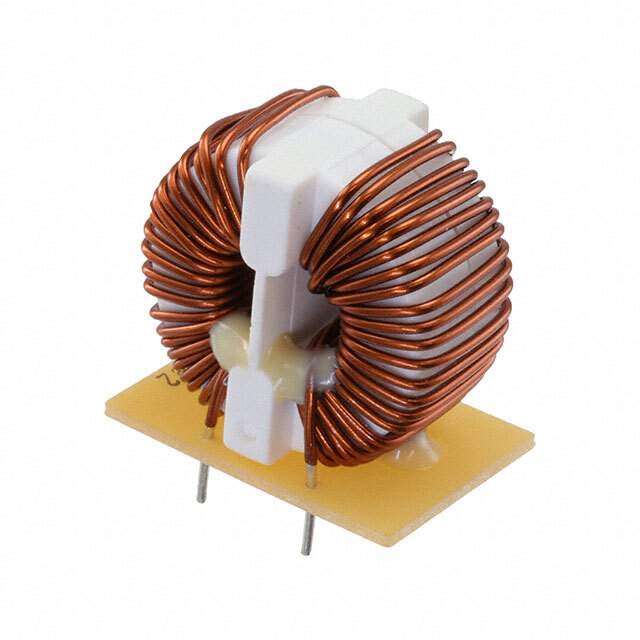

SC22-04-100J Real Image
Same model may have multiple batches, images only for reference.

SC22-04-100J

Part No SC22-04-100J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 71mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" L x 0.866" W (30.00mm x 22.00mm)
Height (Max) 1.260" (32.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC22-04
Other Names 399-SC22-04-100J,UALSC2204100J0
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277000-SC22-04-100J
Ultra Librarian 3D Model Ultra Librarian SC22-04-100J CAD Model

Description

The KEMET 1277000-SC22-04-100J is a common mode choke filter with a 10mH inductance at 10kHz and a 4A maximum current rating.

  • Inductance: 10mH @ 10kHz
  • Maximum Current Rating: 4A
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Filter Type: Power line
  • Voltage Rating: 250V AC/DC
  • Standard Package: 200
  • ROHS3 Compliant: Yes
