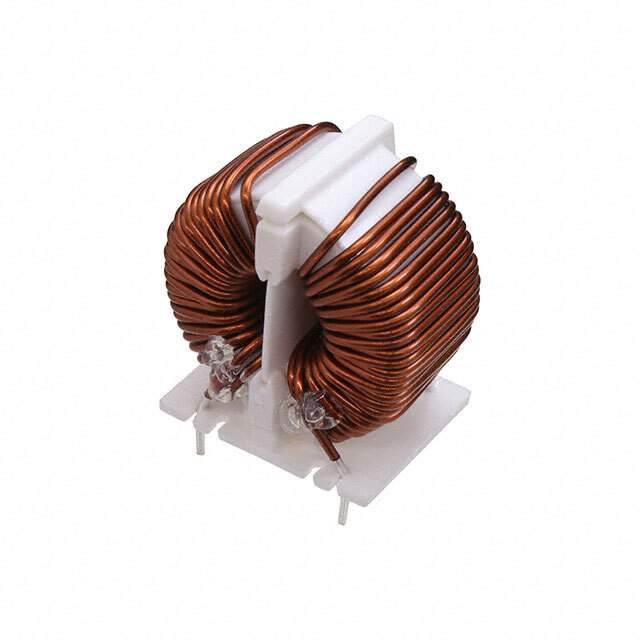

SC-08-30J Real Image
Same model may have multiple batches, images only for reference.

SC-08-30J

Part No SC-08-30J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 54mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-30J,UALSC0830J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276975-SC-08-30J
Ultra Librarian 3D Model Ultra Librarian SC-08-30J CAD Model

Description

The KEMET common mode choke is a power line filter type electronic component with a voltage rating of 250V AC and DC.

  • Current Rating: 8A
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance (DCR): 54mOhm
  • Mounting: Through-hole mounted with a vertical, 4 PC pin package/case
  • Compliance: RoHS compliant
  • Temperature Range: 25°C to 120°C
  • Ideal for: Use in various electronic applications that require a power line filter.
