Same model may have multiple batches, images only for reference.

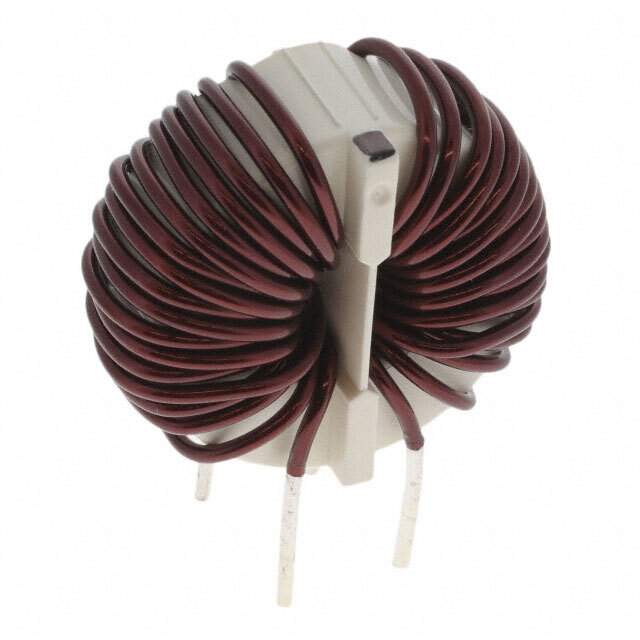

SC-08-1000 Real Image
Same model may have multiple batches, images only for reference.

SC-08-1000

Part No SC-08-1000
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.969" Dia (50.00mm)
Height (Max) 1.969" (50.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-1000
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277078-SC-08-1000
Ultra Librarian 3D Model Ultra Librarian SC-08-1000 CAD Model

Description

The SC series common mode chokes are designed to filter out unwanted noise and interference in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 8A
  • Inductance: 10mH @ 100kHz
  • DC Resistance: 70mOhm
  • Package: 4 PC pins
  • Mounting: Through-hole
  • Operating Temperature Range: -25°C to 105°C
  • Manufacturer: KEMET
