Same model may have multiple batches, images only for reference.

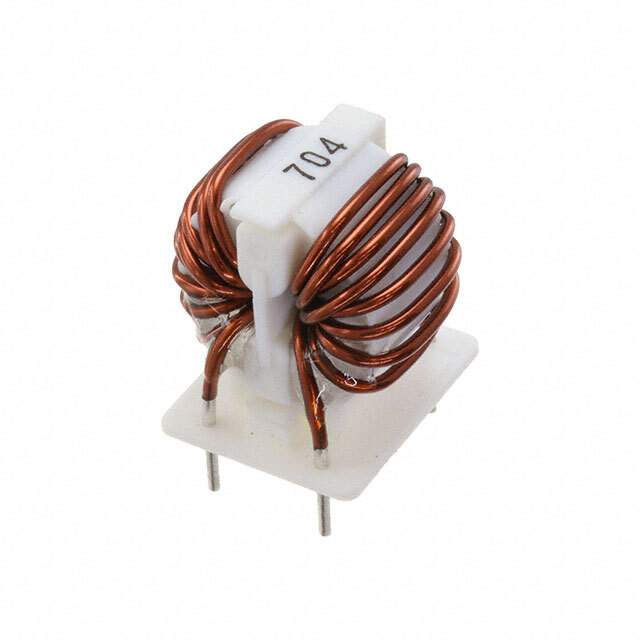

SC-07-50J Real Image
Same model may have multiple batches, images only for reference.

SC-07-50J

Part No SC-07-50J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 10 kHz
Current Rating (Max) 7.3A
DC Resistance (DCR) (Max) 27mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.945" W (34.00mm x 24.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-07
Other Names 399-SC-07-50J,UALSC0750J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276957-SC-07-50J
Ultra Librarian 3D Model Ultra Librarian SC-07-50J CAD Model

Description

The KEMET SC-07-50J is a common mode choke with a package type of tray.

  • Voltage Rating: 250V
  • Current Rating: 7.3A
  • Filter Type: Power line
  • Number of Lines: 2
  • Inductance @ Frequency: 5 mH @ 10 kHz
  • Mounting Type: Through hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: 25°C to 120°C
  • Height: 33.00mm
  • Width: 24.00mm
