Same model may have multiple batches, images only for reference.

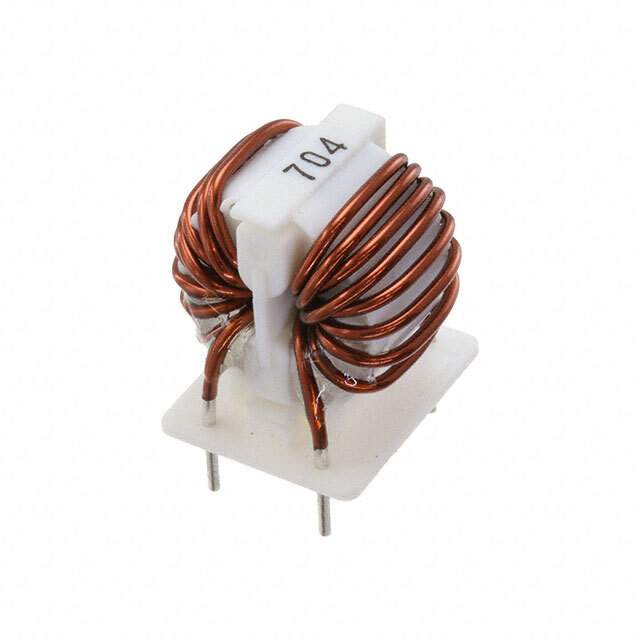

SC-07-04GJ Real Image
Same model may have multiple batches, images only for reference.

SC-07-04GJ

Part No SC-07-04GJ
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 360 µH @ 100 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 14mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.669" W (18.00mm x 17.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-07
Other Names UALSC0704GJ000,399-SC-07-04GJ
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276966-SC-07-04GJ
Ultra Librarian 3D Model Ultra Librarian SC-07-04GJ CAD Model

Description

The KEMET common mode choke with Win Source Part Number 1276966-SC-07-04GJ is a power line filter type component.

  • Voltage Rating: 250V DC
  • Current Rating: 7A
  • Height: 0.787 inches
  • Number of Lines: 2
  • Inductance: 360 µH @ 100 kHz
  • Mounting: Through hole
  • Temperature Range: 25°C to 120°C
  • Series: SC
  • Standard Package: 300
