Same model may have multiple batches, images only for reference.

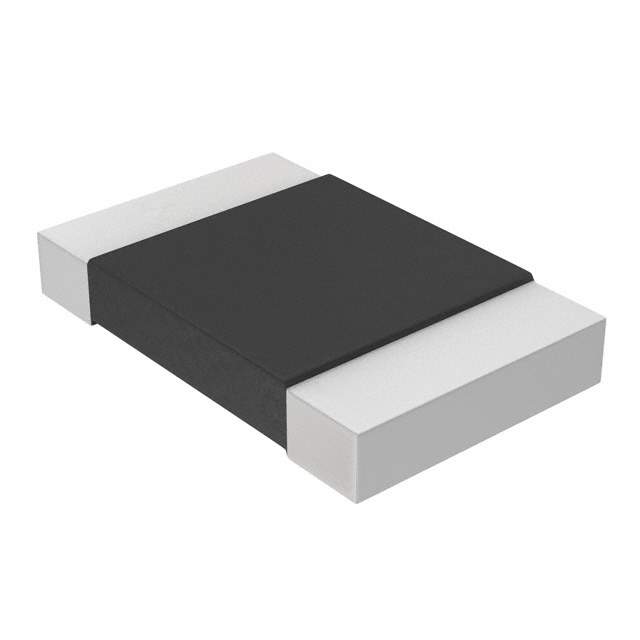

WSL0805R0470FEA Real Image
Same model may have multiple batches, images only for reference.

WSL0805R0470FEA

Part No WSL0805R0470FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.047 OHM 1% 1/8W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 51 Weeks
Features 47 mOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Manufacturer Vishay
Series WSL
Package Reel - TR
Operating Temperature Range -65°C ~ 170°C
Package 0805 (2012 Metric)
Case / Package 0805
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 939073-WSL0805R0470FEA
Ultra Librarian 3D Model Ultra Librarian WSL0805R0470FEA CAD Model

Description

The Vishay WSL0805R0470FEA is a high popularity electronic component.

  • Series: WSL
  • Operating Temperature Range: -65°C ~ 170°C
  • Features: 47 mOhms ±1% 0.125W, 1/8W chip resistor with an 0805 (2012 Metric) package. It is automotive AEC-Q200, current sense, moisture resistant, and pulse-withstanding metal element
  • Package: reel - TR and 0805 (2012 Metric)
  • Manufacturer: Vishay
