Same model may have multiple batches, images only for reference.

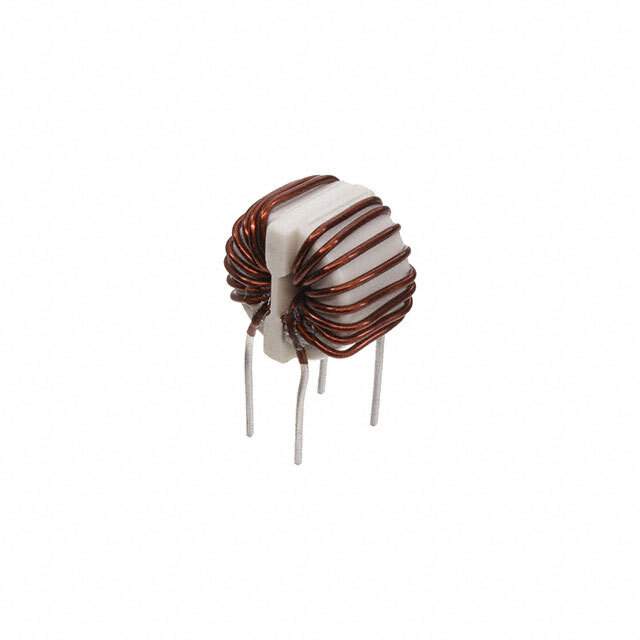

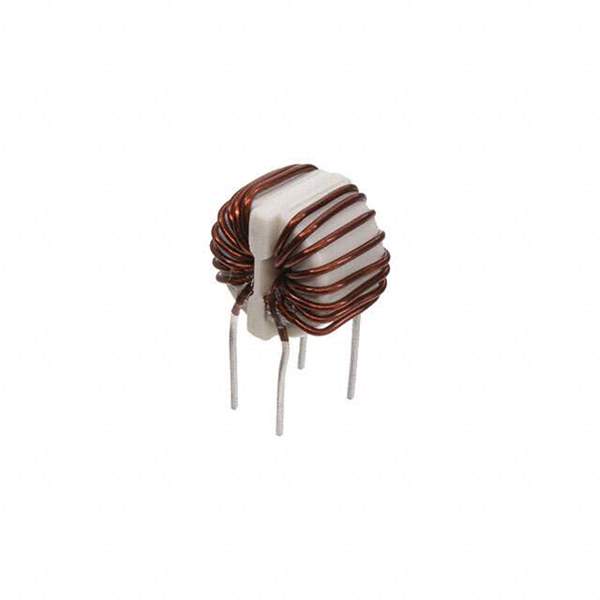

SC-07-030V Real Image
Same model may have multiple batches, images only for reference.

SC-07-030V

Part No SC-07-030V
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 360 µH @ 100 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 14mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" Dia (25.00mm)
Height (Max) 0.984" (25.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-07
Other Names UALSC07030V000,399-SC-07-030V
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277046-SC-07-030V
Ultra Librarian 3D Model Ultra Librarian SC-07-030V CAD Model

Description

The Kemet SC series common mode choke is a power line filter type with a voltage rating of 250V AC/DC and a current rating of 7A. This choke belongs to the SC series and is used in various applications such as power line filtering, EMI/RFI suppression, and switching power supplies.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 7A
  • Filter Type: Power Line
  • Inductance: 360 µH @ 100 kHz
  • DC Resistance (DCR): 14mOhm
  • Mounting: Through hole
  • Dimensions: 0.984" Dia (25.00mm)
  • Height: 0.984" (25.00mm)
  • Temperature Range: -25°C to 120°C
