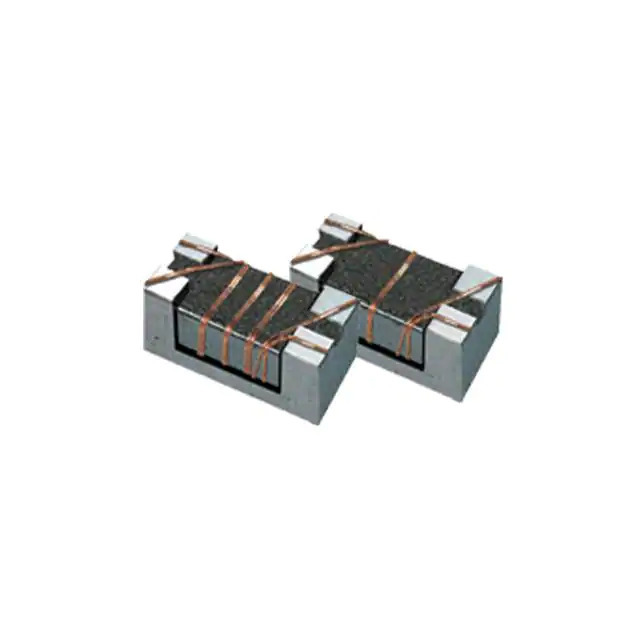

Same model may have multiple batches, images only for reference.
BWCU00201212900M02 Pulse
Same model may have multiple batches, images only for reference.

BWCU00201212900M02

Part No BWCU00201212900M02
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 330MA 2LN 90 OHM SMD
Datasheet
BWCU00201212900M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse Electronics
Series BWCU_02
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 105°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369360-BWCU00201212900M02
Ultra Librarian 3D Model Ultra Librarian BWCU00201212900M02 CAD Model

Description

The 1369360-BWCU00201212900M02 is a common mode choke filter manufactured by Pulse Electronics.

  • Series: BWCU_02
  • Package: Horizontal, 4 PC Pad
  • Temperature Range: -40°C to 105°C
  • Impedance: 90 Ohms @ 100 MHz
  • DCR: 350mOhm
  • Size: 0.081" L x 0.049" W (2.05mm x 1.25mm)
  • Height: 0.055" (1.40mm)
  • Mounting Type: Surface Mount
  • REACH: Unaffected
  • Voltage Rating: 50V
  • Current Rating: 330mA
  • ECCN: EAR99
