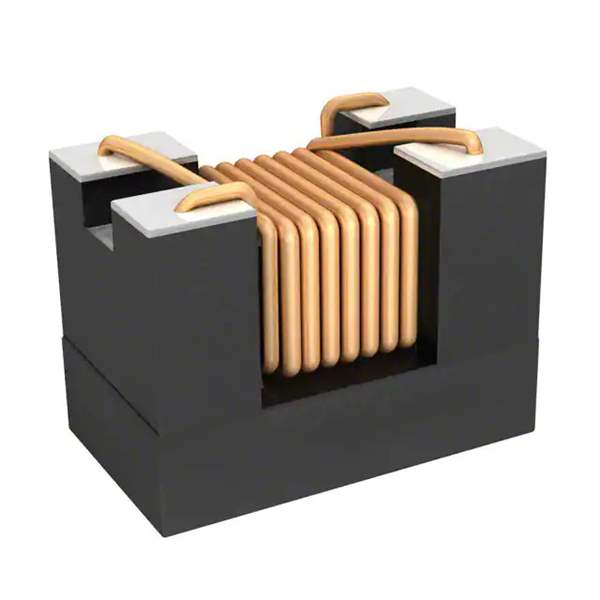

DLW21SN261XQ2L Murata Electronics North America
Same model may have multiple batches, images only for reference.

DLW21SN261XQ2L

Part No DLW21SN261XQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 220MA 2LN 260 OHM SMD
Datasheet
DLW21SN261XQ2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics
Series DLW21
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 260 Ohms @ 100 MHz
Current Rating (Max) 220mA
DC Resistance (DCR) (Max) 590mOhm
Voltage Rating - DC 20V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW21SN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369371-DLW21SN261XQ2L
Ultra Librarian 3D Model Ultra Librarian DLW21SN261XQ2L CAD Model

Description

The DLW21SN261XQ2L is a common mode choke from Murata Electronics. It is part of the DLW21 series and is designed for signal line filtering.

  • Temperature Range: -40°C to 85°C
  • Package / Case: Horizontal, 4 PC Pad
  • Mounting Type: Surface Mount
  • Impedance: 260 Ohms @ 100 MHz
  • Current Rating (Max): 220mA
  • Size / Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height (Max): 0.055" (1.40mm)
  • REACH Compliance: REACH Unaffected
  • ECCN: EAR99
