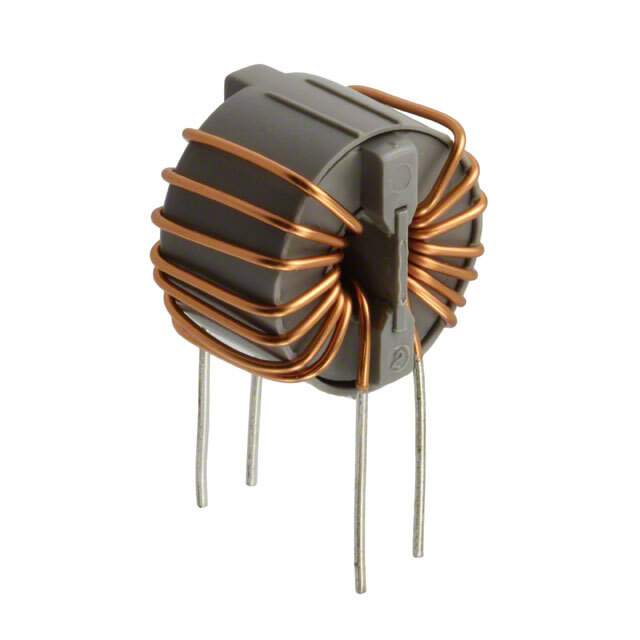

SC-05-D030

Name: SC-05-D030
Brand: Kemet
SKU: 1277047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SC-05-D030
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SC
Package	Bulk
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	30 µH @ 100 kHz
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	20mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 105°C
Mounting Type	Through Hole
Dimension	0.984" Dia x 0.748" W (25.00mm x 19.00mm)
Height (Max)	0.984" (25.00mm)
Package / Case	Vertical, No Base, 4 PC Pin
Base Product Number	SC-05
Other Names	399-10765,UALSC05D030000
Standard Package	300
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.31.4065
Win Source Part Number	1277047-SC-05-D030
Ultra Librarian 3D Model	Ultra Librarian SC-05-D030 CAD Model

Description

The KEMET SC-05-D030 is a common mode choke used for power line filtering. The SC-05-D030 is a reliable component, ideal for power line filtering applications.

Voltage Rating: 250V AC/DC
Package: Bulk
Mounting: Through-hole
Maximum Current Rating: 5A
Standard Package: 300
Height: 0.984 inches
Lines: 2
Inductance at Frequency: 30 µH @ 100 kHz
DC Resistance: 20mOhm
Mounting Type: Vertical, with no base and 4 PC pin
Operating Temperature Range: -25°C to 105°C
ECCN: EAR99
