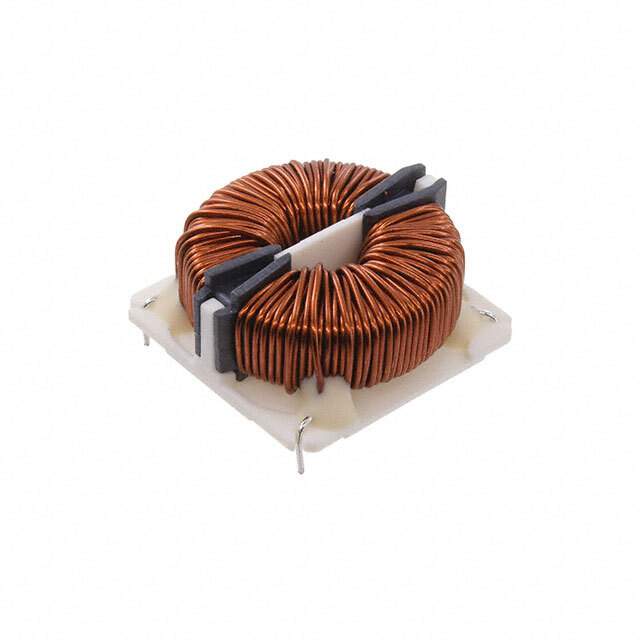

SC-05-700JH Real Image
Same model may have multiple batches, images only for reference.

SC-05-700JH

Part No SC-05-700JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7 mH @ 10 kHz
Current Rating (Max) 5A
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 1.299" W (34.00mm x 33.00mm)
Height (Max) 0.709" (18.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SC-05
Other Names UALSC05700JH00,399-SC-05-700JH
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276941-SC-05-700JH
Ultra Librarian 3D Model Ultra Librarian SC-05-700JH CAD Model

Description

The KEMET SC-05-700JH common mode choke from KEMET is designed for use in power line filtering applications.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 5A
  • Inductance: 7mH @ 10kHz
  • Temperature Range: -25°C to 120°C
  • Package: Horizontal, 4 PC pin
  • Mounting: Through hole
  • Packaging: Tray
  • Standard Package: 180
