Same model may have multiple batches, images only for reference.

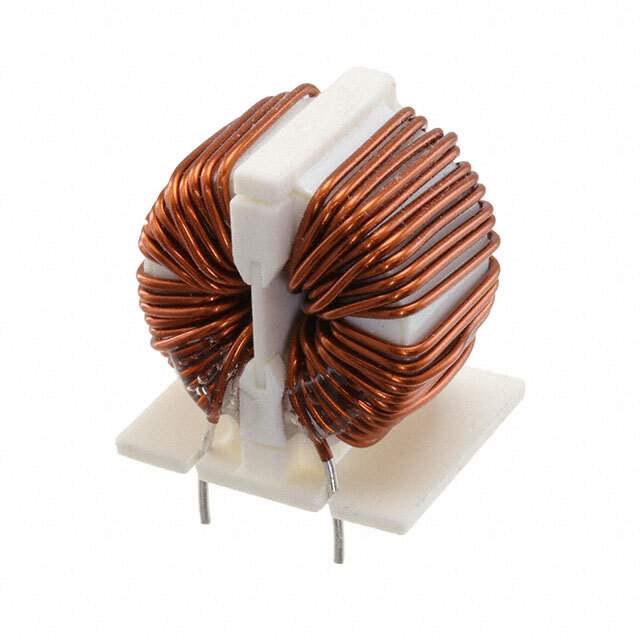

SC-04-E50J Real Image
Same model may have multiple batches, images only for reference.

SC-04-E50J

Part No SC-04-E50J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5.18 mH @ 10 kHz
Current Rating (Max) 4.3A
DC Resistance (DCR) (Max) 56.4mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.764" W (23.50mm x 19.40mm)
Height (Max) 0.945" (24.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-04
Other Names UALSC04E50J000,399-SC-04-E50J
Standard Package 360
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276956-SC-04-E50J
Ultra Librarian 3D Model Ultra Librarian SC-04-E50J CAD Model

Description

The Kemet SC-04-E50J is a common mode choke that is used in power line filter applications.

  • Series: SC
  • Voltage Rating: 250V AC and DC
  • Current Rating: 4.3A
  • Height: 0.945" (24.00mm)
  • Number of Lines: 2
  • Inductance: 5.18 mH @ 10 kHz
  • DC Resistance (DCR): 56.4mOhm
  • Status: Active
  • Standard Package: 360
  • ECCN: EAR99
  • Temperature Range: 25°C ~ 120°C
  • Dimension: 0.925" L x 0.764" W (23.50mm x 19.40mm)
  • Package/Case: Vertical, 4 PC pin
  • Packaging: Tray
  • REACH: REACH unaffected
  • HTSUS: 8548.00
