Same model may have multiple batches, images only for reference.

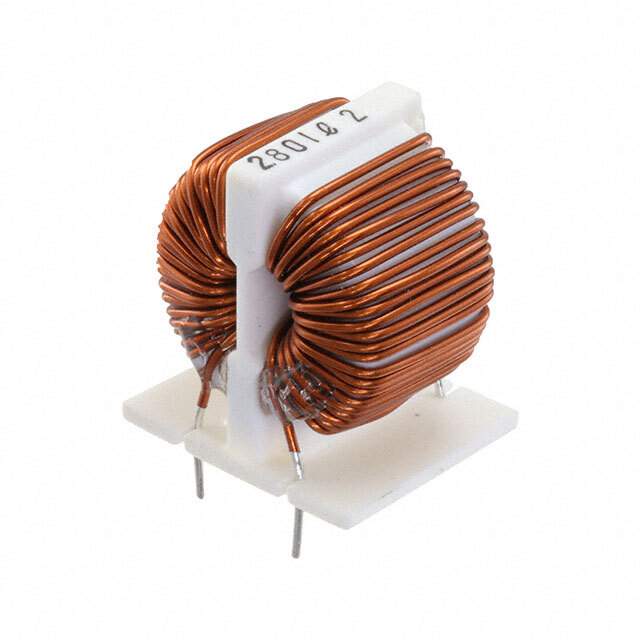

SC-03-67J Real Image
Same model may have multiple batches, images only for reference.

SC-03-67J

Part No SC-03-67J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.7 mH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 105mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.945" L x 0.787" W (24.00mm x 20.00mm)
Height (Max) 1.024" (26.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-03
Other Names 399-SC-03-67J,UALSC0367J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276945-SC-03-67J
Ultra Librarian 3D Model Ultra Librarian SC-03-67J CAD Model

Description

The KEMET SC series common mode choke is a power line filter used to suppress common mode noise.

  • DC Resistance: 105mOhm (maximum)
  • Current Rating: 3A
  • Package/Case: Vertical, 4 PC pin
  • Height: 1.024" (26.00mm)
  • Filter Type: Power line
  • Number of Lines: 2
  • Temperature Range: 25°C to 120°C
  • Application: Tray
  • Standard Package: 400
  • Voltage Rating AC/DC: 250V
