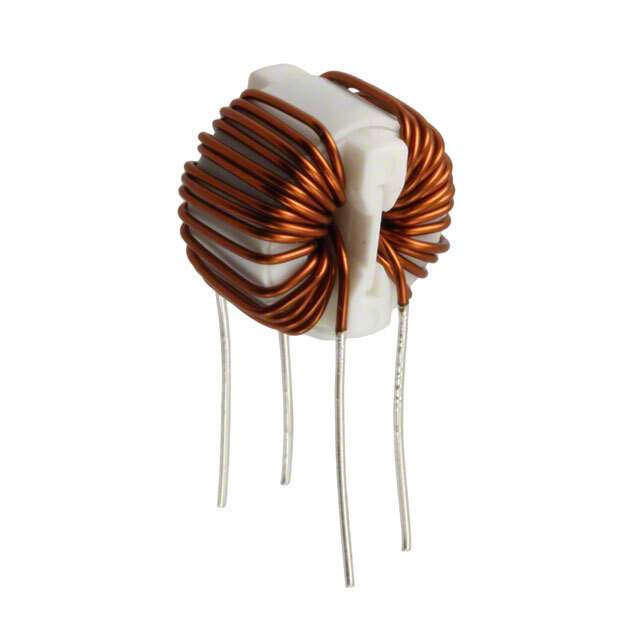

SC-03-10G Real Image
Same model may have multiple batches, images only for reference.

SC-03-10G

Part No SC-03-10G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-03
Other Names 399-10639,UALSC0310G0000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277086-SC-03-10G
Ultra Librarian 3D Model Ultra Librarian SC-03-10G CAD Model

Description

The KEMET SC Common Mode Choke is a power line filter designed to provide high inductance and low DC resistance.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 3A
  • Mounting Type: Through-hole
  • Package/Case: Vertical with no base and 4 PC pins
  • Height: 0.689 inches
  • Diameter: 0.551 inches
  • Inductance @ a frequency of 100 kHz: 1 mH
  • Maximum DC resistance (DCR): 35 mOhm
  • Operating Temperature Range: -25°C to 105°C
  • ECCN: EAR99 compliant
  • REACH: Unaffected by REACH
  • Packaging: Bulk
  • Standard Package: 1,300
