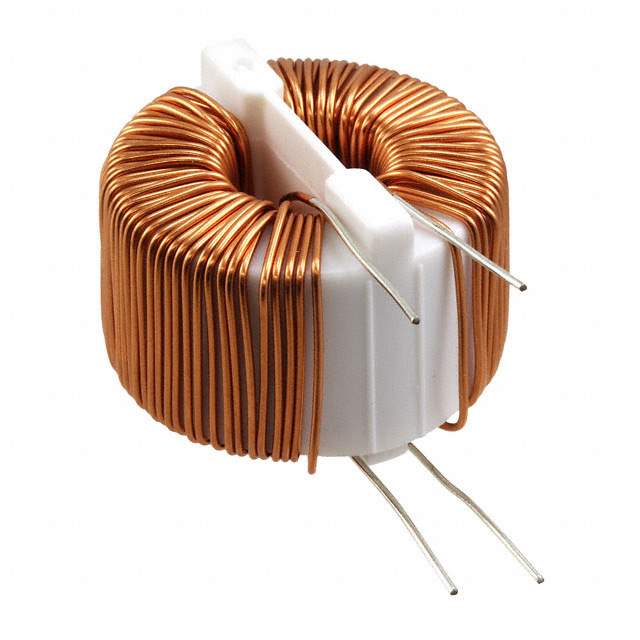

SC-02-800 Real Image
Same model may have multiple batches, images only for reference.

SC-02-800

Part No SC-02-800
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-02
Other Names UALSC028000000,399-10609
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277027-SC-02-800
Ultra Librarian 3D Model Ultra Librarian SC-02-800 CAD Model

Description

The KEMET SC-02-800 is a common mode choke filter designed for use in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 2A
  • Height: 34.00mm
  • Diameter: 1.339"
  • Mounting: Through hole
  • Package: Vertical, no base, and 4 PC pin
  • Inductance: 8mH @ 100 kHz
  • DC Resistance (DCR): 150mOhm
  • Operating Temperature Range: -25°C to 105°C
  • Series: SC series
  • Packaging: Bulk
  • Standard Package: 200
