Same model may have multiple batches, images only for reference.

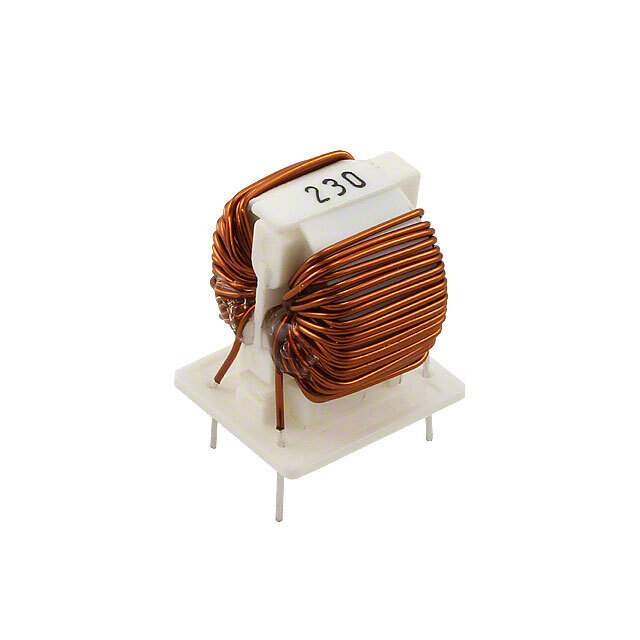

SC-02-30GJ Real Image
Same model may have multiple batches, images only for reference.

SC-02-30GJ

Part No SC-02-30GJ
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names 399-10641,UALSC0230GJ000
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277053-SC-02-30GJ
Ultra Librarian 3D Model Ultra Librarian SC-02-30GJ CAD Model

Description

The Kemet SC-02-30GJ common mode choke is a through-hole type choke with a voltage rating AC/DC of 250V and a current rating (Max) of 2A. The Kemet SC-02-30GJ common mode choke is ideal for use in various electronic devices.

  • Voltage Rating AC/DC: 250V
  • Current Rating (Max): 2A
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance (DCR) (Max): 100mOhm
  • Filter: Power Line
  • Height (Max): 0.787" (20.00mm)
  • Dimension: 0.689" L x 0.669" W (17.50mm x 17.00mm)
  • Operating Temperature: between -25°C to 120°C
  • Halogen-Free: Yes
  • ECCN: EAR99
