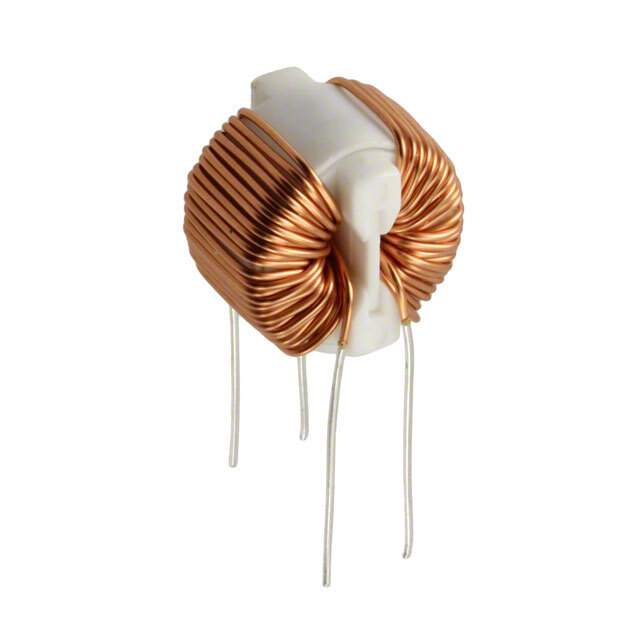

SC-02-30G Real Image
Same model may have multiple batches, images only for reference.

SC-02-30G

Part No SC-02-30G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 85mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-02
Other Names UALSC0230G0000,399-10637
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277052-SC-02-30G
Ultra Librarian 3D Model Ultra Librarian SC-02-30G CAD Model

Description

The KEMET SC-02-30G common mode choke is a power line filter with a voltage rating of 250V AC and 250V DC and a maximum current rating of 2A. This choke is a part of the SC series from KEMET.

  • Voltage Rating: 250V AC
  • Voltage Rating: 250V DC
  • Maximum Current Rating: 2A
  • Inductance: 3mH @ 100 kHz
  • DC Resistance: 85mOhm
  • Packaging: Bulk
  • Standard Package: 1,300
  • Height: 0.689 inches
  • Lines: 2
  • Mounting Type: Through hole
  • Package/Case: Vertical, with no base and four PC pins
  • Operating Temperature: between -25°C and 105°C
