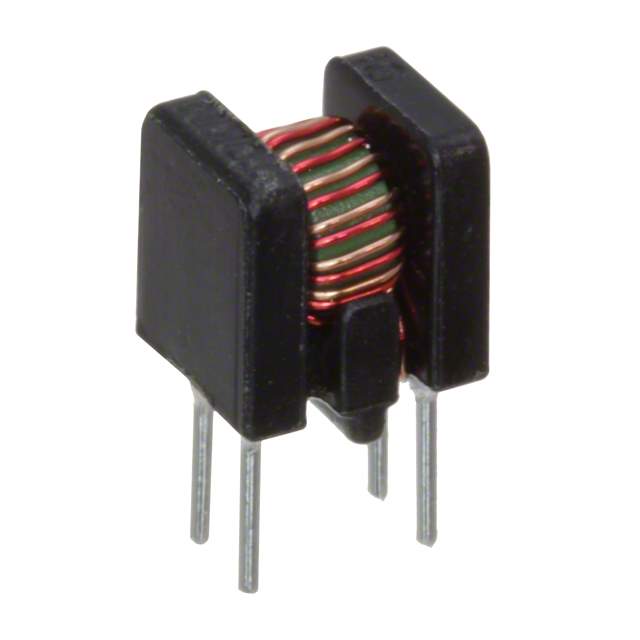

SBT-0180W Real Image
Same model may have multiple batches, images only for reference.

SBT-0180W

Part No SBT-0180W
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SBT-01W
Package Bulk
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 80 µH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 55mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Through Hole
Height (Max) 0.354" (9.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SBT-018
Other Names UDLSBTW0180W00,399-19651
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277098-SBT-0180W
Ultra Librarian 3D Model Ultra Librarian SBT-0180W CAD Model

Description

The KEMET SBT-0180W is a common mode choke filter that has a current rating (max) of 500mA.

  • Current Rating (Max): 500mA
  • Inductance: 80 μH @ 1 kHz
  • DC Resistance (DCR) (Max): 55mOhm
  • Package: Vertical, 4 PC pin
  • Standard Package: 1,000
  • REACH Status: Unaffected
  • HTSUS: 8548.00.0000
