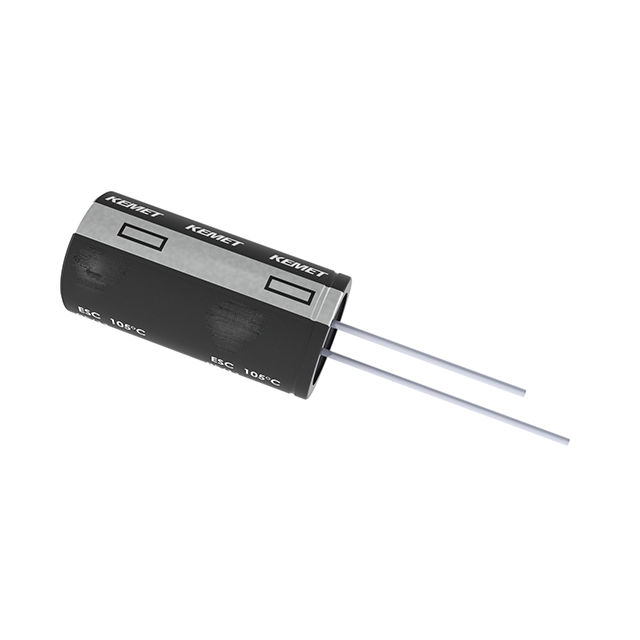

Same model may have multiple batches, images only for reference.

ESC105M050AC3AA

Name: ESC105M050AC3AA
Brand: Kemet
SKU: 1035531
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ESC105M050AC3AA
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 1UF 20% 50V RADIAL / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2.4Ohm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	KEMET
Series	ESC
Package	Box
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	2.4Ohm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	16 mA @ 120 Hz
Ripple Current @ High Frequency	40 mA @ 100 kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ESC105M
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	399-ESC105M050AC3AA
Standard Package	500
Win Source Part Number	1035531-ESC105M050AC3AA
Ultra Librarian 3D Model	Ultra Librarian ESC105M050AC3AA CAD Model

Alternative Products

Description

The KEMET ESC105M050AC3AA is an aluminum electrolytic capacitor with a capacitance of 1 µF and a voltage rating of 50 V.

Ripple Current: 16 mA @ 120 Hz and 40 mA @ 100 kHz
Applications: general-purpose applications
Mounting Type: through-hole
Package: radial, can package
