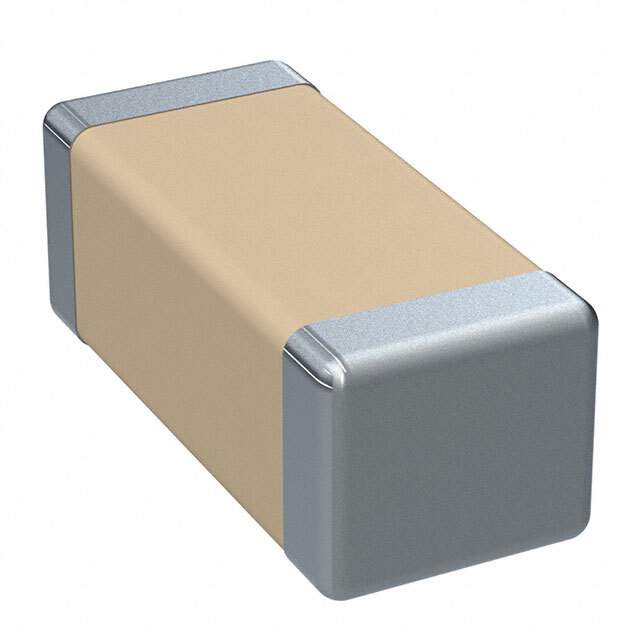

The C1206C104K2RACTU is a ceramic capacitor manufactured by Kemet. It is a surface-mount capacitor used for various applications, including decoupling, filtering, and bypass, in electronic circuits.

Applications

• Decoupling capacitors for integrated circuits
• Bypass capacitors in power supplies
• Filtering capacitors in signal processing circuits
• Resonant circuits
• General-purpose applications

Features

• 1206 case size (0.12 inch x 0.06 inch)
• 100 nF (104) capacitance
• 200V voltage rating (2)
• X7R dielectric
• Surface-mount technology (SMT)

Benefits

• Provides stable capacitance over temperature
• Reduces noise and voltage ripple
• Simplifies circuit board design
• Offers high volumetric efficiency
• Suitable for high-density circuit boards

Additional Details

The C1206C104K2RACTU features an X7R dielectric, which offers a good balance between capacitance stability and size. The 1206 case size provides a larger capacitance value compared to smaller case sizes. The capacitor's 200V voltage rating makes it suitable for applications with higher voltage requirements. The capacitance tolerance is typically ±10%. The part number C1206C104K2RACTU specifies the capacitor's characteristics, including size, capacitance, voltage rating, dielectric, and termination. This is a robust component used in a variety of applications.
