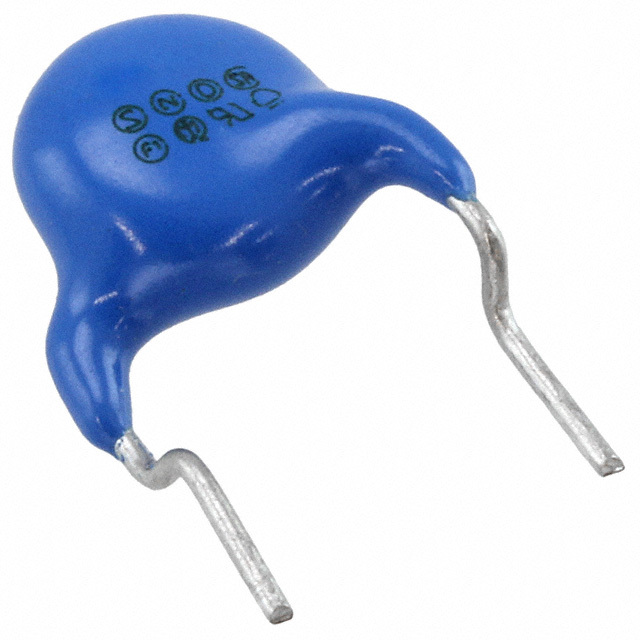

Same model may have multiple batches, images only for reference.
CS80ZU2GA222MYGKA TDK Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CS80ZU2GA222MYGKA

Part No CS80ZU2GA222MYGKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description 2200 pF ±20% 300VAC/440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr TDK Corporation
Series CS
Packaging Bulk
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 300VAC/440VAC
Temperature Coefficient Z5U
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1477684-CS80ZU2GA222MYGKA
Ultra Librarian 3D Model Ultra Librarian CS80ZU2GA222MYGKA CAD Model
