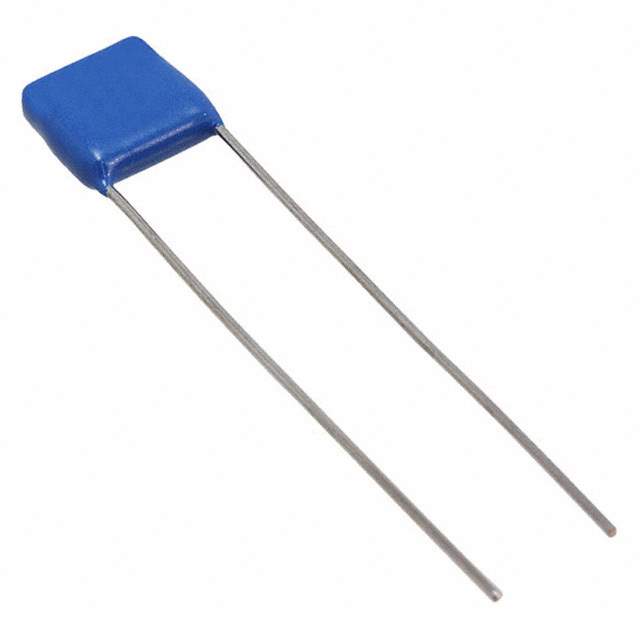

30HV12N102KC Real Image
Same model may have multiple batches, images only for reference.

30HV12N102KC

Part No 30HV12N102KC
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 1000PF 3KV NP0 RADIAL / 1000 pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial
Datasheet
30HV12N102KC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series HV RAD-LDD Indust C0G HVHT200C
Package Bulk
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 200°C
Features High Voltage, High Temperature
Applications Downhole
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.420" L x 0.250" W (10.67mm x 6.35mm)
Height - Seated (Max) 0.400" (10.16mm)
Lead Spacing 0.300" (7.62mm)
Lead Style Straight
Base Product Number 30HV12N
Standard Package 21
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
California Prop 65 Warning Information
Win Source Part Number 1351950-30HV12N102KC
Ultra Librarian 3D Model Ultra Librarian 30HV12N102KC CAD Model

Description

The HV RAD-LDD Indust C0G HVHT200C series ceramic capacitor from KEMET is a high-quality, through-hole device that provides reliable and efficient performance for downhole applications.

  • Capacitance: 1000 picofarads
  • Voltage Rating: 3000V
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Length: 0.420 inches
  • Width: 0.250 inches
  • Height (Max): 0.400 inches
  • Mounting Type: Through-Hole
  • Package: Radial
  • Temperature Range: -55°C to 200°C
  • RoHS: Non-Compliant
