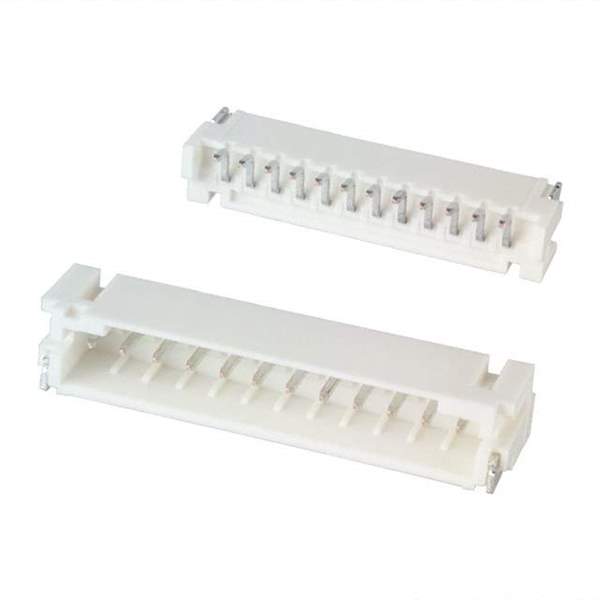

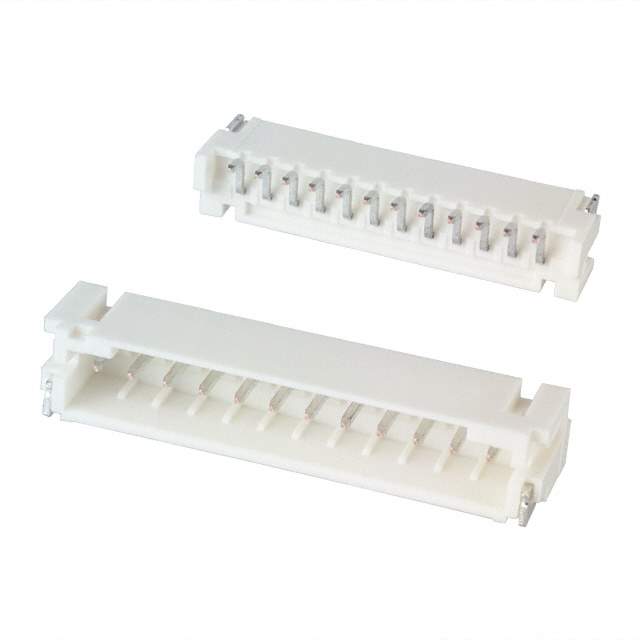

S12B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S12B-PH-SM4-TB(LF)(SN)

Part No S12B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADR PH SIDE 12POS 2MM SMD
Datasheet
S12B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
Win Source Part Number 726600-S12B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian S12B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 726600-S12B-PH-SM4-TB(LF)(SN) is a 12-position header connector with male pins that are soldered to the board.

  • Product Name: JST Sales America Inc. 726600-S12B-PH-SM4-TB(LF)(SN)
  • Manufacturer: JST Sales America Inc.
  • Position: 12
  • Pins: Male
  • Termination: Soldered
  • Detent Lock: Yes
  • Shrouded: Four walls
  • Contact Material: Copper alloy
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mated Stacking Height: 5.5mm
  • Pitch-Mating: 0.079 inches
  • Insulation Material: Polyamide (PA6T) and nylon 6T
  • Insulation Color: Natural
  • Mounting: Surface-mounted
  • Orientation: Right-angled
  • Application: Board-to-cable/wire
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Category: Connectors and Interconnects
