Same model may have multiple batches, images only for reference.

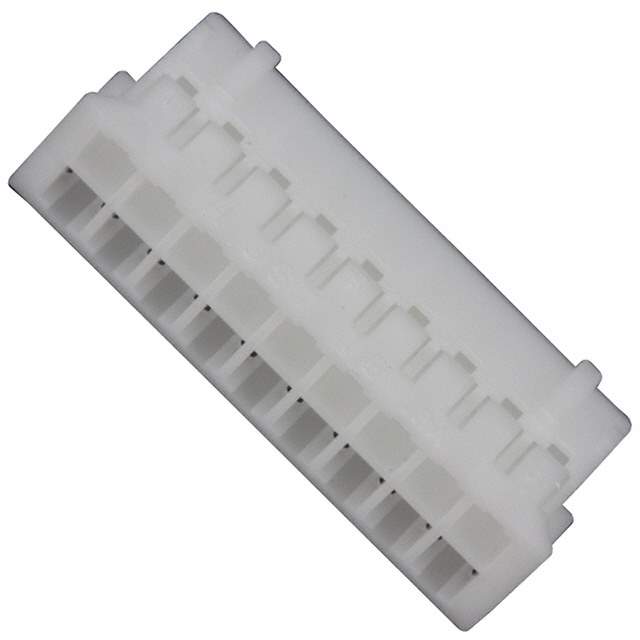

PHDR-18VS Real Image
Same model may have multiple batches, images only for reference.

PHDR-18VS

Part No PHDR-18VS
Manufacturer JST Sales America Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HOUSING PHD 18POS 2MM DUAL  /  18 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 18
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number PHDR-18V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names (G)PHDR-18VS,PHDR18VS,455-1905
Standard Package 1,000
Win Source Part Number 1188550-PHDR-18VS
Ultra Librarian 3D Model Ultra Librarian PHDR-18VS CAD Model

Description

The PHD series connector is a 18 position receptacle with female sockets, in a 2 row configuration with a pitch of 0.079" (2.00mm).

  • Position: 18
  • Gender: Receptacle, Female Sockets
  • Row Configuration: 2
  • Pitch: 0.079" (2.00mm)
  • Termination: Crimp
  • Contacts Included: No
  • Packaging: Bulk
  • Color: Natural
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C ~ 85°C
  • Mounting Type: Free Hanging (In-Line)
