Same model may have multiple batches, images only for reference.

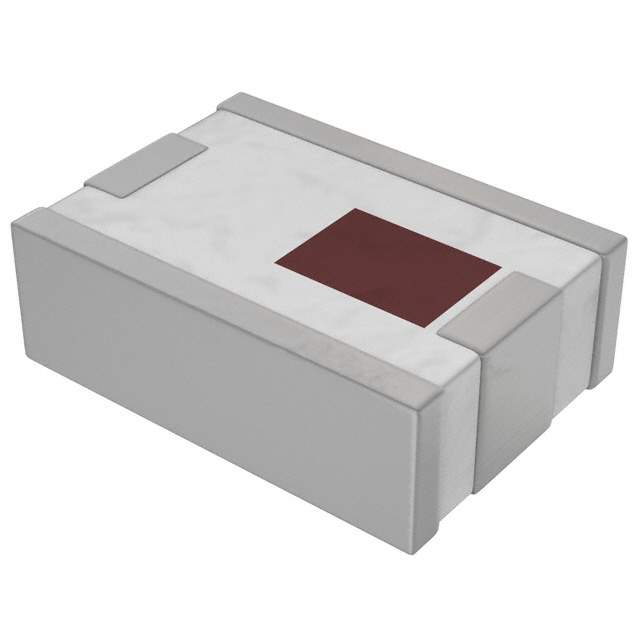

2450BP15B0100001E Real Image
Same model may have multiple batches, images only for reference.

2450BP15B0100001E

Part No 2450BP15B0100001E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0805 / 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 2.2dB 0805 (2012 Metric), 4 PC Pad
Datasheet
2450BP15B0100001E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Johanson Technology Inc.
Series -
Package Tape & Reel
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Ripple -
Insertion Loss 2.2dB
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 4 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.026" (0.65mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000 pcs
Win Source Part Number 1380697-2450BP15B0100001E
Ultra Librarian 3D Model Ultra Librarian 2450BP15B0100001E CAD Model

Description

The 1197834 is an RF filter manufactured by Johanson Technology Inc. It is part of the band pass filter type and has a frequency range of 2.45GHz center with a bandwidth of 100MHz.

  • Filter Type: Band Pass
  • Frequency Center: 2.45GHz
  • Bandwidth: 100MHz
  • Insertion Loss: 2.2dB
  • Mounting Type: Surface Mount
  • Package / Case: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Package: Tape & Reel
  • Standard Package: 4,000 pcs
  • Manufacturer: Johanson Technology Inc.
