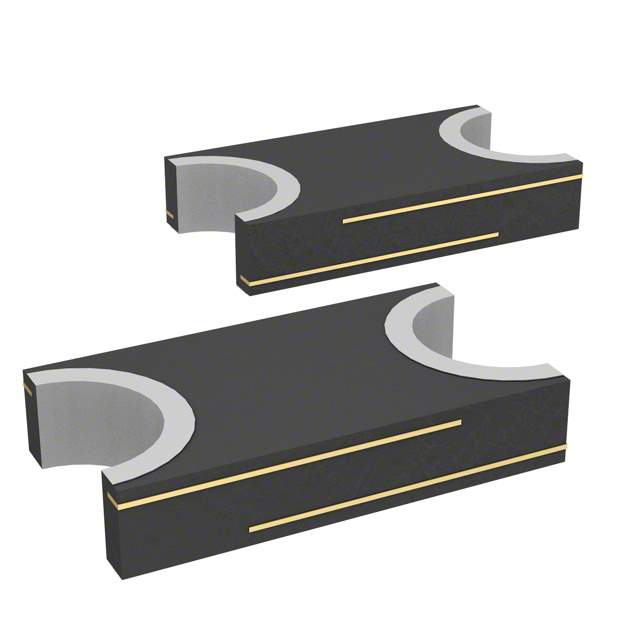

Same model may have multiple batches, images only for reference.

FEMTOSMDC016F-02

Name: FEMTOSMDC016F-02
Brand: Littelfuse Inc.
SKU: 804615
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FEMTOSMDC016F-02
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 9V 160MA 0603 / Specification Status: Released
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Polymeric
Voltage - Max	9V
Current - Max	40A
Current - Hold (Ih) (Maximum)	160mA
Current - Trip (It)	400mA
Time to Trip	100ms
Resistance - Initial (Ri) (Min)	1 Ohms
Resistance - Post Trip (R1) (Maximum)	4.2 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	SMD
Manufacturer Package	0603, Concave
Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Maximum)	0.030" (0.75mm)
Approvals	CSA, UL
Manufacturer Pack Quantity	4,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804615-FEMTOSMDC016F-02
Ultra Librarian 3D Model	Ultra Librarian FEMTOSMDC016F-02 CAD Model

Alternative Products

Description

{"ProductId":743316,"FormattedDescription":"

The Littelfuse Inc. FEMTOSMDC016F-02 is a polymeric type surface mount device that is designed to protect against overcurrent faults.

Maximum Voltage: 9V
Current Rating: 40A
Current Trip (It): 400mA
Time to Trip: 100ms
Package: 0603, concave
Initial Resistance (Ri): 1 Ohms
Current Hold (Ih): 160mA
Post Trip Resistance (R1): 4.2 Ohms
Packaging: Reel
