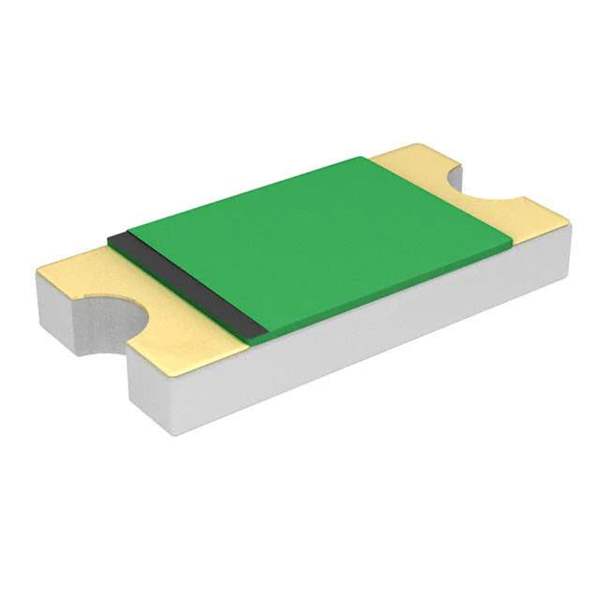

0ZCJ0035AF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0035AF2E

Part No 0ZCJ0035AF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 350MA 1206
Datasheet
0ZCJ0035AF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 350 mA
Current - Trip (It) 750 mA
Current - Max 40 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 300 mOhms
Resistance - Post Trip (R1) (Max) 1.2 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.051" (1.30mm)
Approval Agency AEC-Q200, cURus, TUV
Standard Package 3,000 pcs
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 845908-0ZCJ0035AF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0035AF2E CAD Model

Description

The 0ZCJ0035AF2E is a polymeric PTC resettable fuse designed for circuit protection.

  • Voltage - Max: 30V
  • Current - Max: 40A
  • Current - Hold (Ih): 350mA
  • Current - Trip (It): 750mA
  • Time to Trip: 100ms
  • Mounting Type: Surface Mount
  • Package / Case: 1206 (3216 Metric), Concave
  • Operating Temperature: -40°C to 85°C
  • Resistance - Initial (Ri): 300mOhms
  • Resistance - Post Trip (R1): 1.2 Ohms
  • Approvals: AEC-Q200, cURus, TUV
  • Manufacturer: Bel Fuse Inc.
  • Product Status: Active
