Same model may have multiple batches, images only for reference.

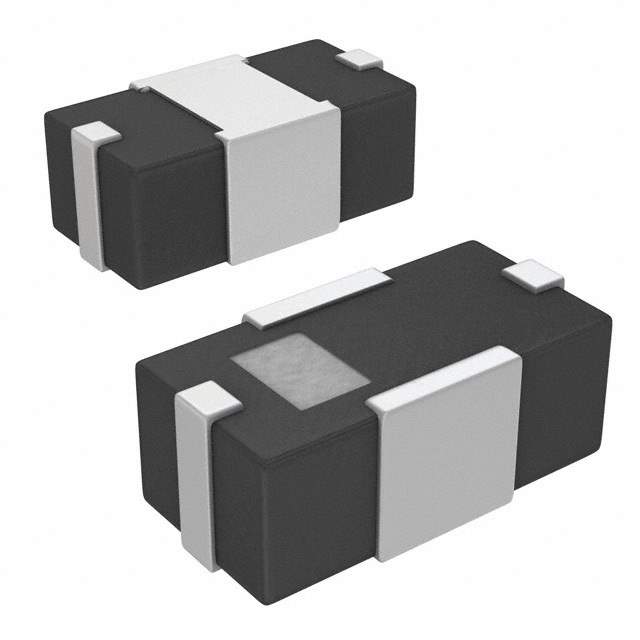

DEA205425BT-1209B2 Real Image
Same model may have multiple batches, images only for reference.

DEA205425BT-1209B2

Part No DEA205425BT-1209B2
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 5GHZ WLAN
Datasheet
DEA205425BT-1209B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 5.425GHz Center
Bandwidth 1.05GHz
Filter Type Band Pass
Insertion Loss 1.5dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.039" (1.00mm)
Win Source Part Number 1032827-DEA205425BT-1209B2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA205425BT-1209B2 CAD Model

Description

The TDK Corporation 1032827-DEA205425BT-1209B2 is a high-quality filter that is designed to provide optimal performance.

  • Supply and Demand Status: balanced
  • Package: reel package
  • Mounting: SMD (SMT)
  • Frequency Center: 5.425GHz
  • Insertion Loss: 1.5dB
  • Bandwidth: 1.05GHz
  • Height: 0.039" (1.00mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
