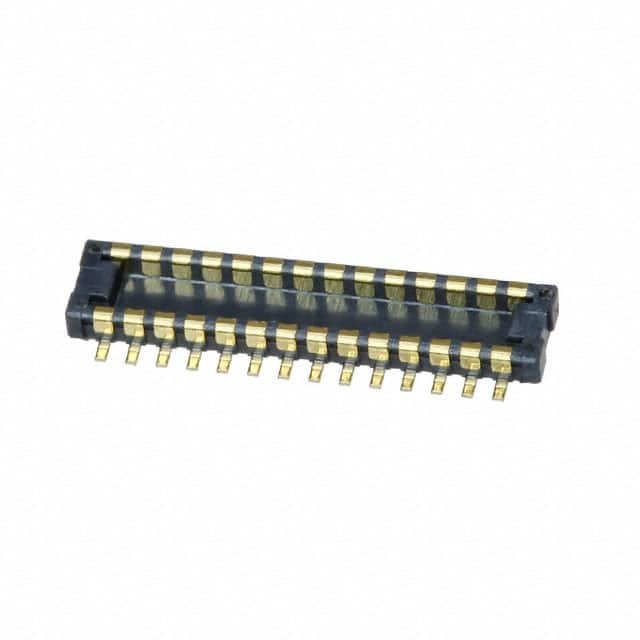

Same model may have multiple batches, images only for reference.
WP7-P024VA1-R500
Same model may have multiple batches, images only for reference.

WP7-P024VA1-R500

Part No WP7-P024VA1-R500
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 24POS SMD GOLD / 24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP7
Package Tape & Reel
Product Status Discontinued
Connector Type Plug, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.020" (0.50mm)
Base Product Number WP7-P024
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 903297-WP7-P024VA1-R500
Ultra Librarian 3D Model Ultra Librarian WP7-P024VA1-R500 CAD Model

Description

The WP7-P024VA1-R500 is a rectangular connector array from JAE Electronics.

  • Connector Type: Plug connector with outer shroud contacts
  • Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Contact Finish: Gold with a thickness of 4.00µin (0.100µm)
  • Mounting: Surface Mount Mounting
  • Height Above Board: 0.020" (0.50mm)
  • Package: Tape & Reel package with a standard package quantity of 500 pcs
  • Series: WP7
  • Category: Connectors, Interconnects
  • Status: Discontinued
