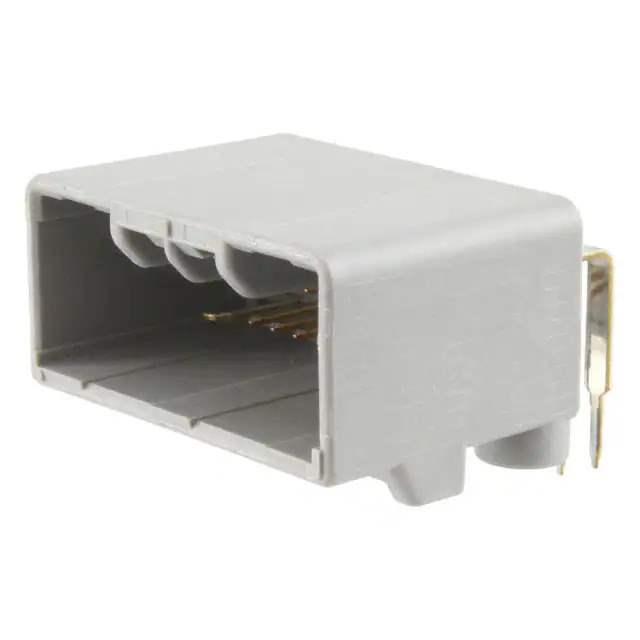

MX34017NFA Real Image
Same model may have multiple batches, images only for reference.

MX34017NFA

Part No MX34017NFA
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 17POS / Connector Header Through Hole, Right Angle 17 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Number of Positions 17
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.650" (16.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34017N
Standard Package 504 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 886638-MX34017NFA
Ultra Librarian 3D Model Ultra Librarian MX34017NFA CAD Model

Description

The MX34017NFA is a male pin header connector from JAE Electronics.

  • Series: MX34
  • Positions: 17
  • Feature: Mounting flange
  • Mounting: Through hole, right angle
  • Contact Finish: Tin
  • Insulation Material: Syndiotactic polystyrene (SPS), glass filled
  • Temperature Range: -40°C to 85°C
  • Current Rating: 3A
  • Package: Tube
  • Standard Package Quantity: 504 pcs
  • Status: Active product
  • Category: Connectors, interconnects - rectangular connectors - headers, male pins
