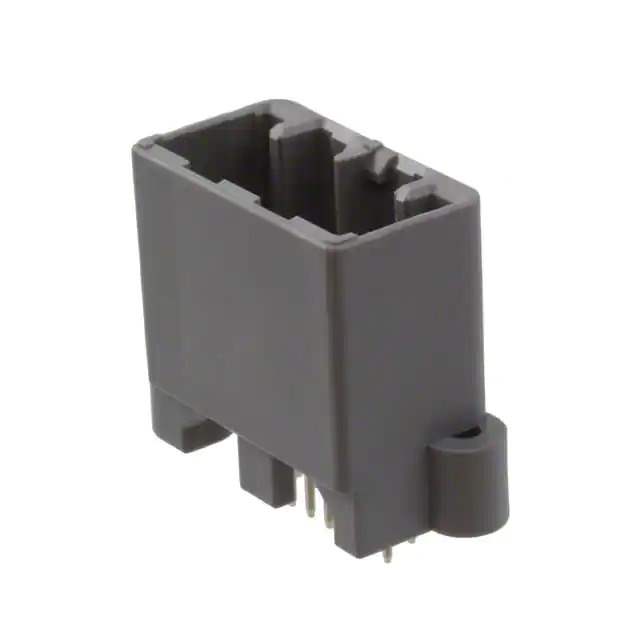

MX34016UF1 Real Image
Same model may have multiple batches, images only for reference.

MX34016UF1

Part No MX34016UF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.925" (23.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Mated Stacking Heights 29.95mm
Applications Automotive
Base Product Number MX34016U
Standard Package 19 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848613-MX34016UF1
Ultra Librarian 3D Model Ultra Librarian MX34016UF1 CAD Model

Description

The MX34 series from JAE Electronics is a reliable range of male pin headers.

  • Series: MX34
  • Connector Type: Header
  • Number of Positions: 16
  • Mounting Feature: Mounting Flange
  • Termination Type: Solder
  • Contact Material: Brass
  • Insulation Material: Syndiotactic Polystyrene (SPS)
  • Application: Automotive
  • Package: Tube
  • Temperature Range: -40°C to 85°C
  • Application: Board-to-Cable/Wire
