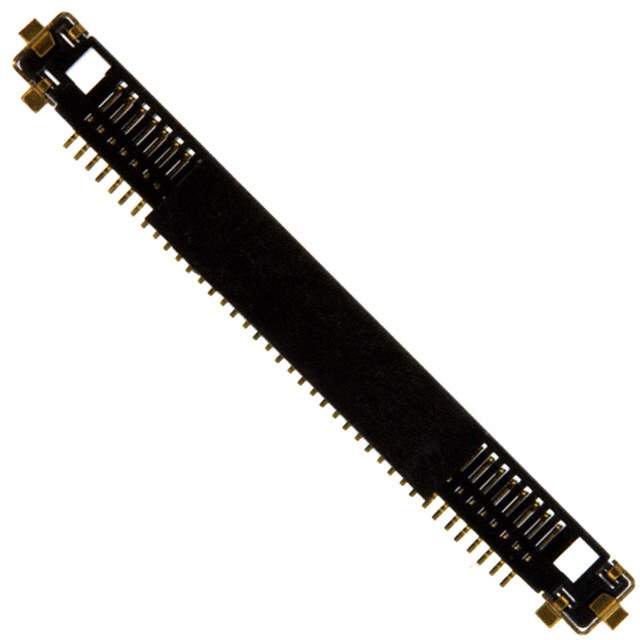

FI-J40S-VF15N Real Image
Same model may have multiple batches, images only for reference.

FI-J40S-VF15N

Part No FI-J40S-VF15N
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONTACT COPPER ALLOY | CONN RCPT 40POS 0.016 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Tray
Status Obsolete
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.016" (0.40mm)
Number of Rows 1
Mounting Style SMD
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90μin (0.099μm)
Insulation Color Black
Insulation Height 0.046" (1.16mm)
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Mated Stacking Heights 1.58mm
Features Pick and Place, Solder Retention
Current Rating (Amps) 0.3A per Contact
Voltage Rating 50V
Applications General Purpose
Insulation Material Plastic
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174247-FI-J40S-VF15N
Manufacturer Homepage www.jae.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FI-J40S-VF15N CAD Model

Description

The JAE Electronics 1174247-FI-J40S-VF15N is a 40-position receptacle connector that comes in a tray package. It is from JAE Electronics.

  • Position: 40
  • Package: Tray
  • Features: Pick and place feature and solder retention
  • Style: Board to cable/wire
  • Pitch-Mating: 0.016" (0.40mm)
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Insulation Height: 0.046" (1.16mm)
  • Color: Black
  • Contact Finish-Mating: Gold with a thickness of 3.90μin (0.099μm)
  • Contact Finish-Post: Flash
